2.7 V6
2.7 V6

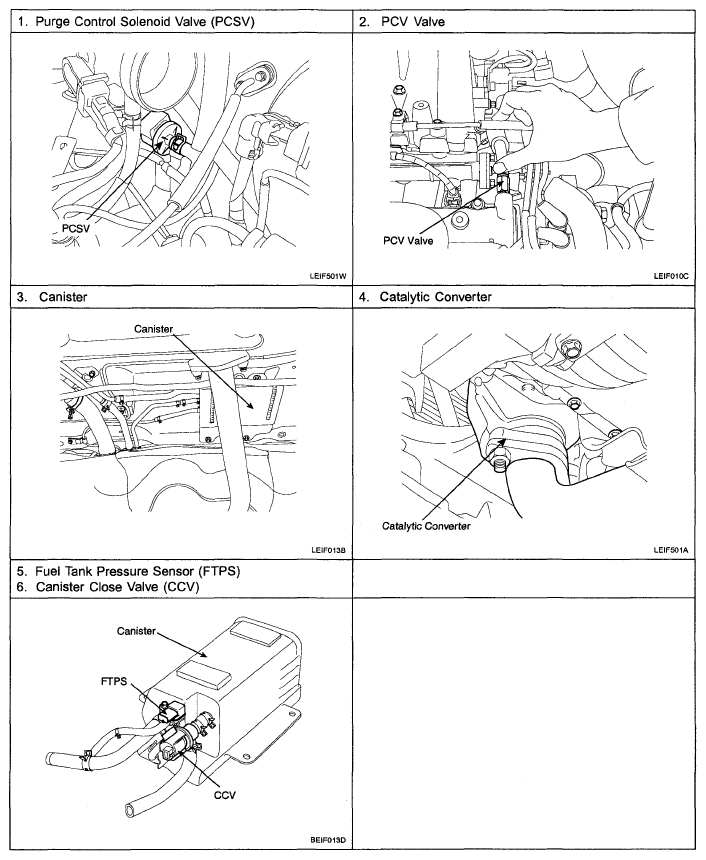

Fig 1: Identifying Emissions Control System Components Location (2.7 V6)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
