Home › Hyundai › 2007 › Accent GLS, Automatic › Repair and Diagnosis › Electrical › Charging Systems › Charging System › Resistance Inspection › Notes

Resistance Inspection: Notes

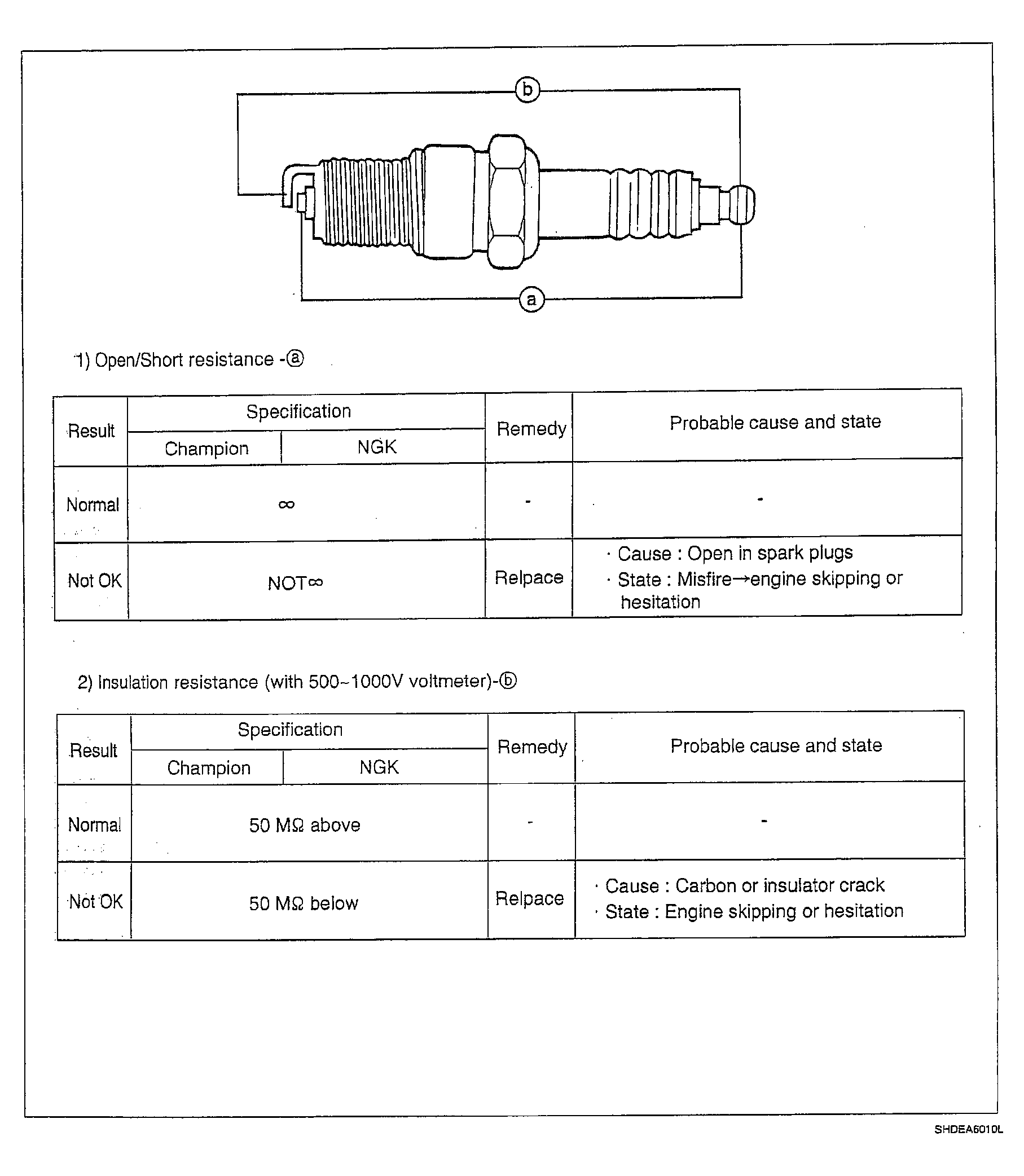

Fig 1: Identifying Open/Short & Insulation Resistance
G00455556Courtesy of HYUNDAI MOTOR CO.
