Circuit Diagram: [M/T]

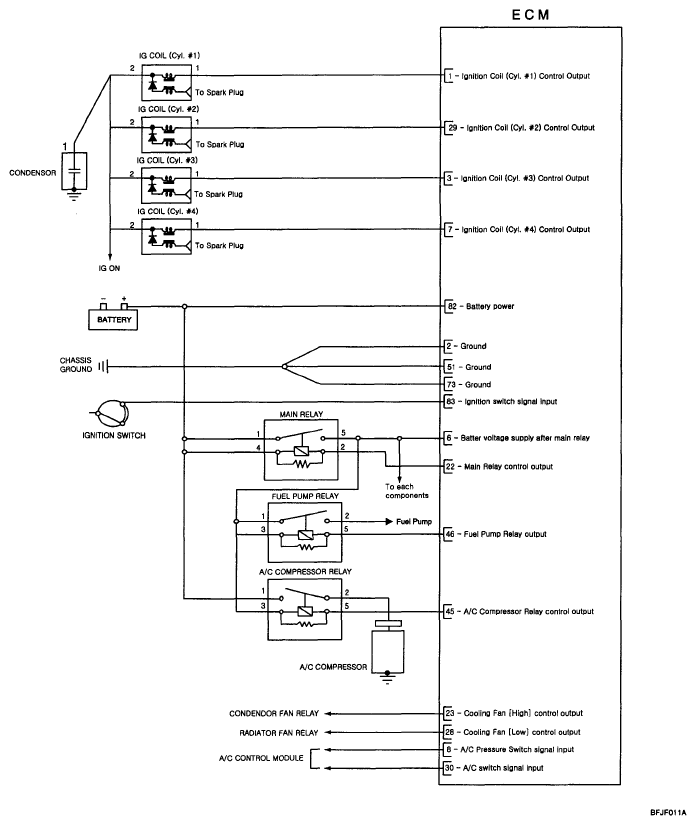

Fig 1: Fuel System Circuit Diagram - M/T (1 Of 4)
G04801516Courtesy of HYUNDAI MOTOR CO.

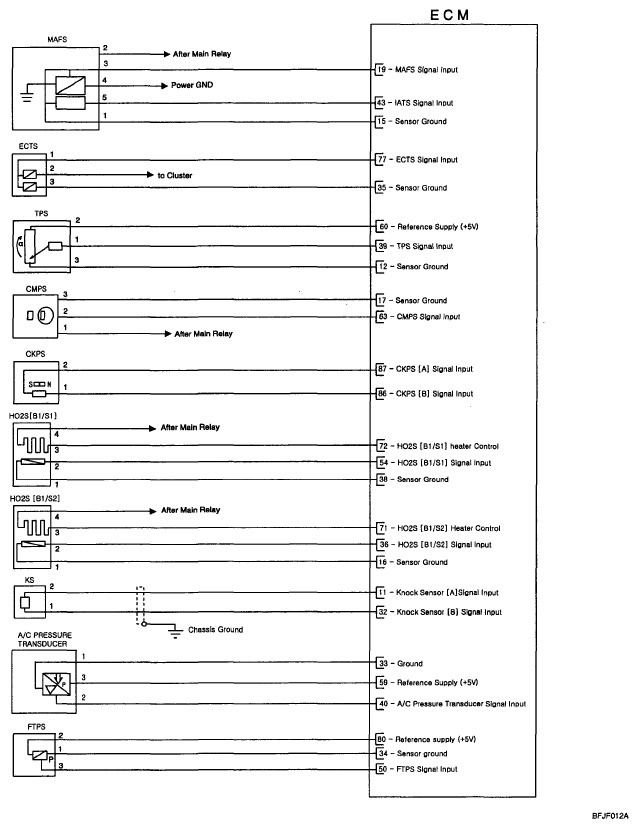

Fig 2: Fuel System Circuit Diagram - M/T (2 Of 4)
G04801517Courtesy of HYUNDAI MOTOR CO.

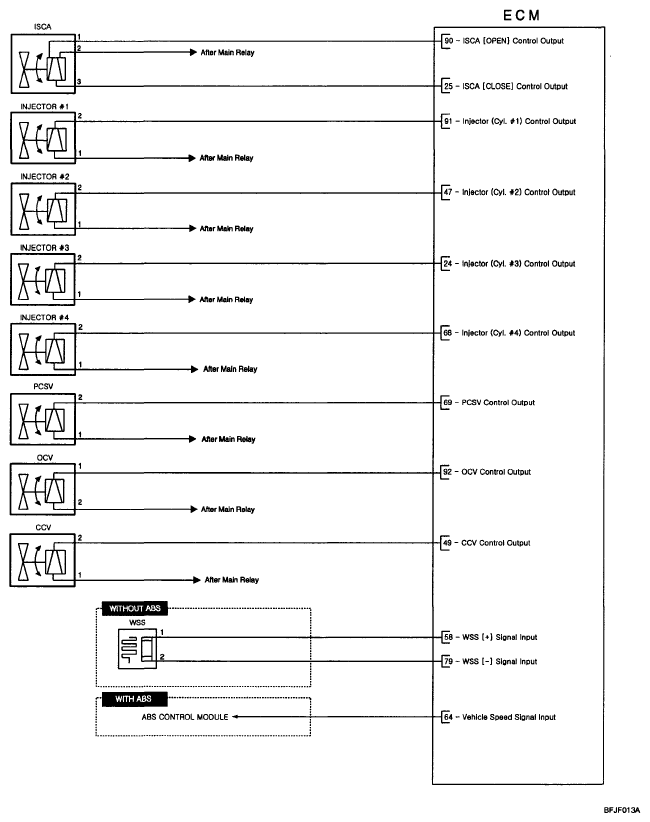

Fig 3: Fuel System Circuit Diagram - M/T (3 Of 4)
G04801518Courtesy of HYUNDAI MOTOR CO.

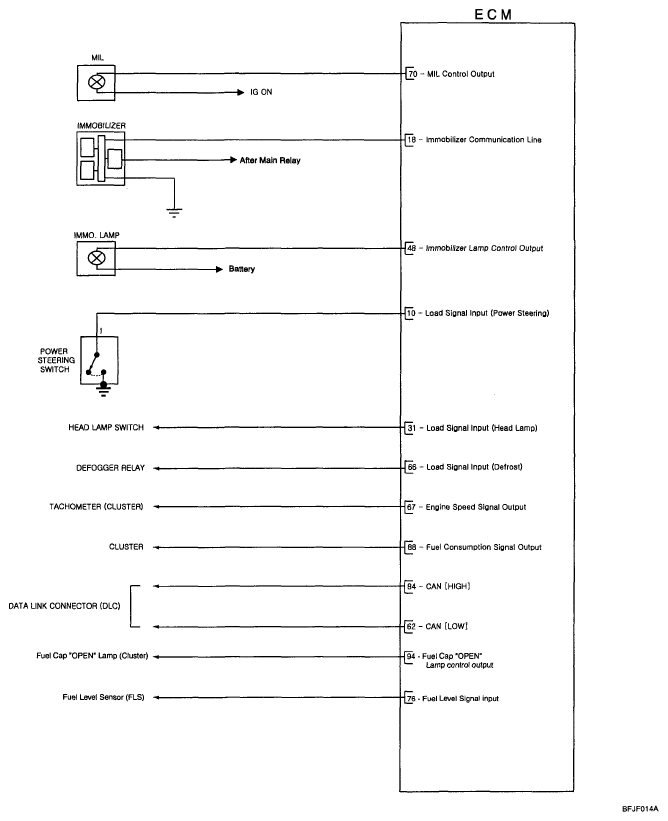

Fig 4: Fuel System Circuit Diagram - M/T (4 Of 4)
G04801519Courtesy of HYUNDAI MOTOR CO.
