Automatic Transaxle Hydraulic Circuit: Lock

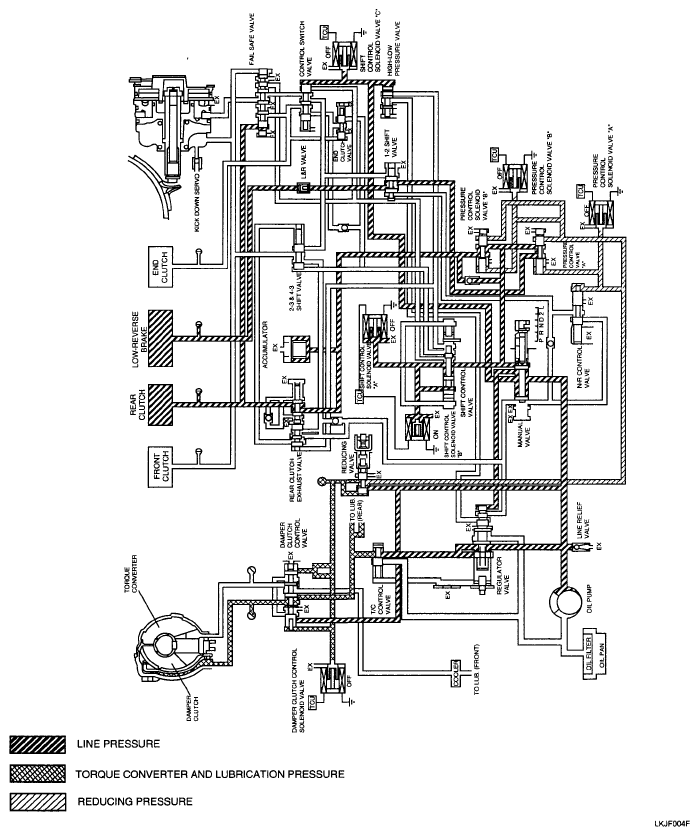

Fig 1: Automatic Transaxle Hydraulic Circuit Diagram - Lock
G04802052Courtesy of HYUNDAI MOTOR CO.
