Hood Assembly Replacement
NOTE:
- When removing and installing the hood, an assistant is necessary
- Take care not to damage the hood and body.
- When removing the clips, use a clip remover.
- Disconnect the windshield washer nozzle connecting tube.

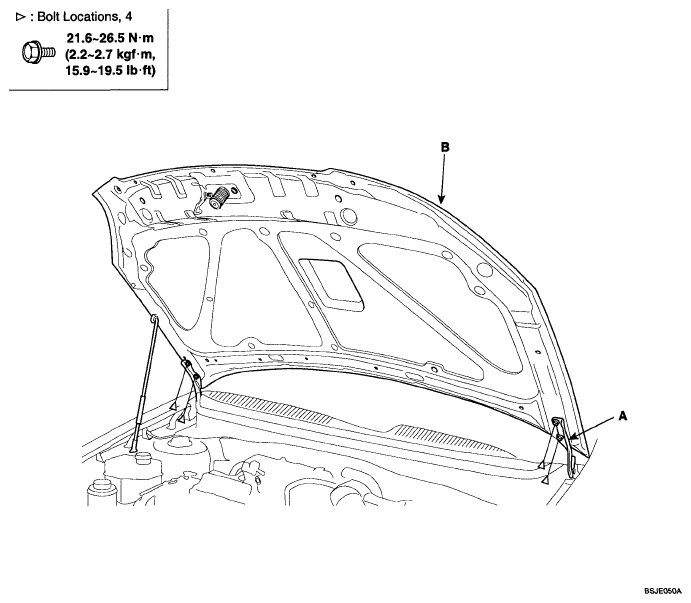

- After loosening the hood hinge (A) mounting bolts, remove the hood (B).
- Installation is the reverse of removal.NOTE:
- Make sure the hood opens properly and locks securely.
- Adjust the hood alignment (See ADJUSTMENT ).
