Cruise REMOCON Switch Replacement

WARNING: This page is about a different car, the 2006 Hyundai Tucson. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the battery negative cable, then disconnect the positive cable, and wait at least three minutes.
Remove the driver's airbag (See RESTRAINTS ).
Disconnect the remocon switch connector (A).
Loosen the two mounting screws (B), and remove the cruise remocon switch (C).

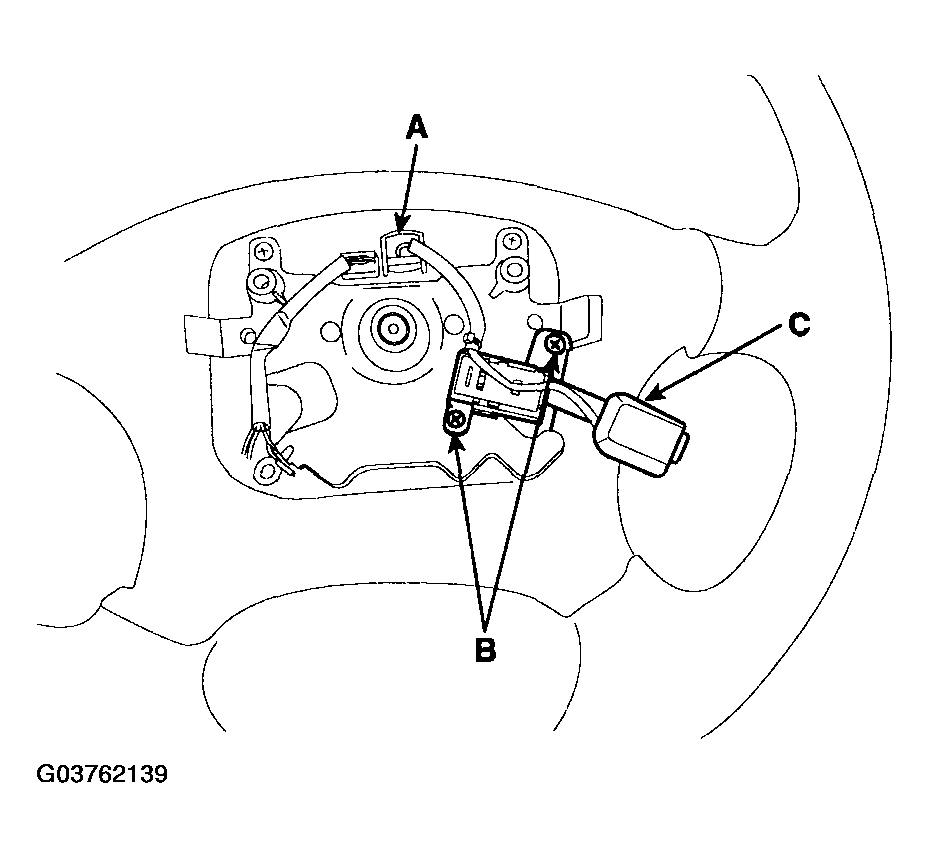

Fig 1: Identifying Remocon Switch Connector, Mounting Screws & Cruise Remocon Switch
Courtesy of HYUNDAI MOTOR CO.
Installation is the reverse of removal.
Connect the battery positive cable and negative cable to the battery.
