Front Strut Assembly: Components

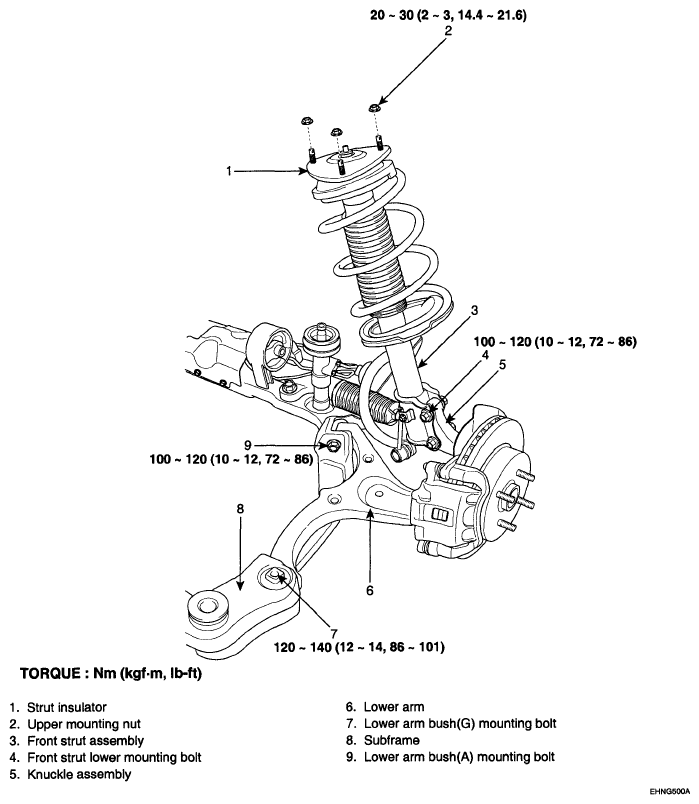

Fig 1: Front Strut Assembly Replacement Components With Torque Specifications (1 Of 2)

Courtesy of HYUNDAI MOTOR CO.

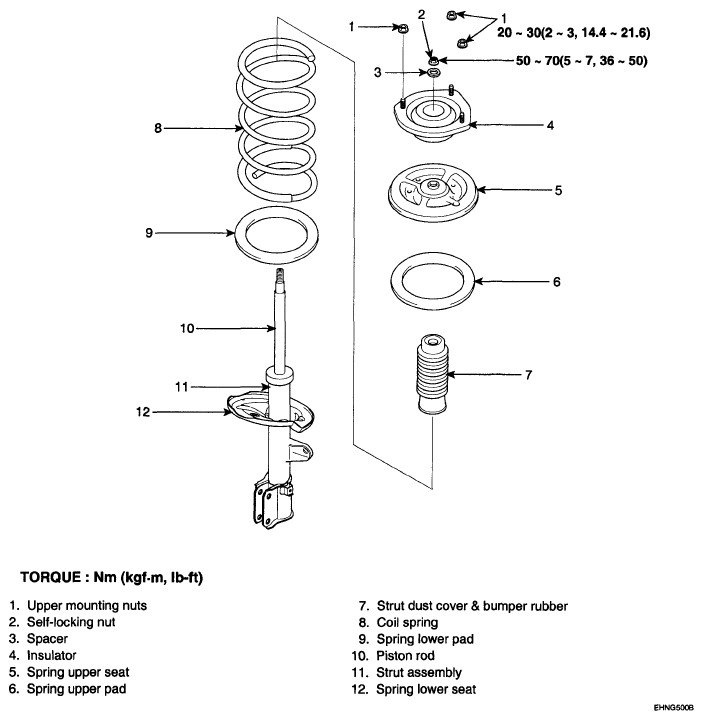

Fig 2: Front Strut Assembly Replacement Components With Torque Specifications (2 Of 2)

Courtesy of HYUNDAI MOTOR CO.
