Anti-Lock Braking System Control Module: Components

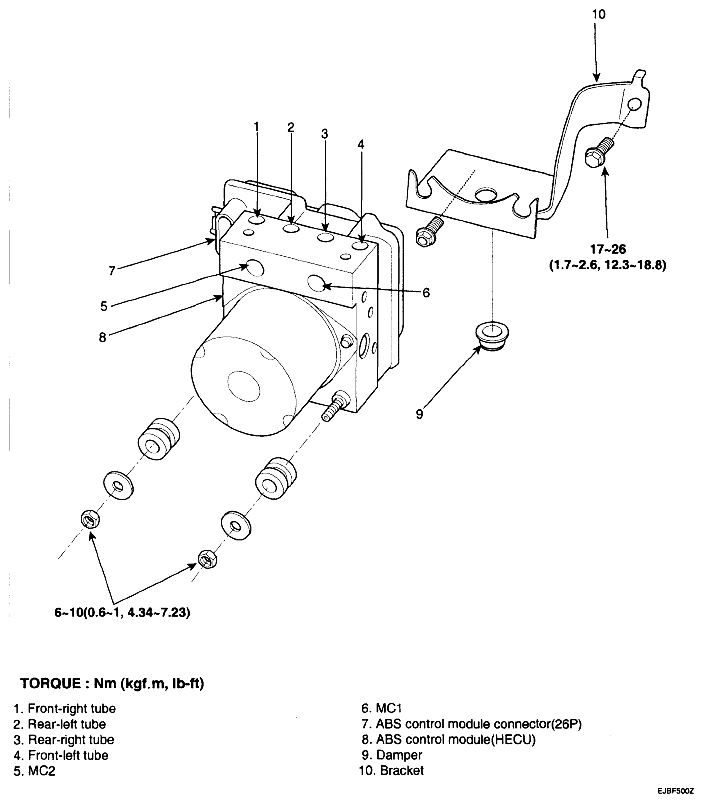

Fig 1: Identifying Anti-Lock Braking System Control Module Components
G04880986Courtesy of HYUNDAI MOTOR CO.
