Chart 4

  1. RADIO

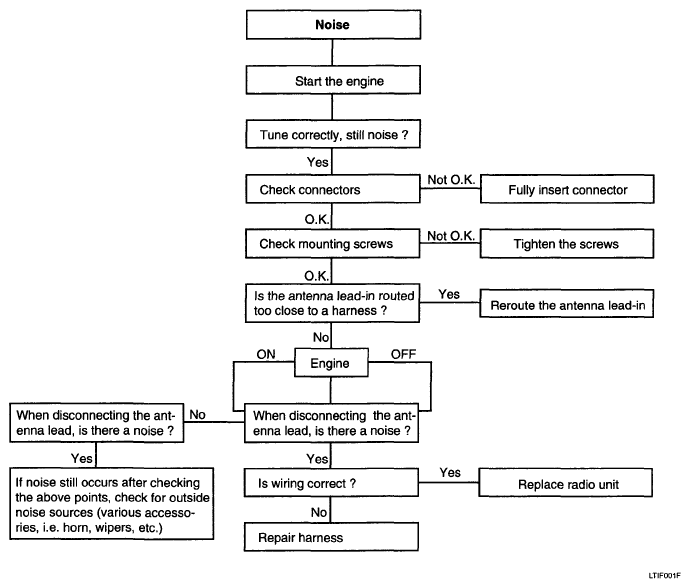

    Fig 1: Radio Symptom Troubleshooting Flow Chart 4
    G04802870Courtesy of HYUNDAI MOTOR CO.
  2. TAPE
    Fig 2: Tape Symptom Troubleshooting Flow Chart 4
    G04802871Courtesy of HYUNDAI MOTOR CO.
