Azera GLS
›
Repair and Diagnosis
›
Accessories & Equipment
›
Entertainment Systems
›
Audio System
›
Audio Remote Control
›
Circuit Diagram
Circuit Diagram

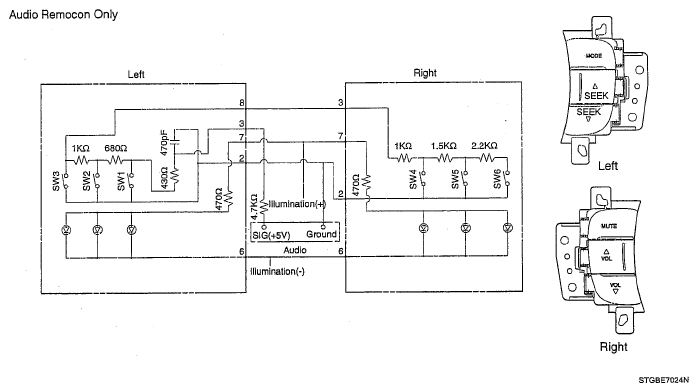

Fig 1: Audio Remote Control Circuit Diagram (Audio Remocon Only)
Courtesy of HYUNDAI MOTOR CO.

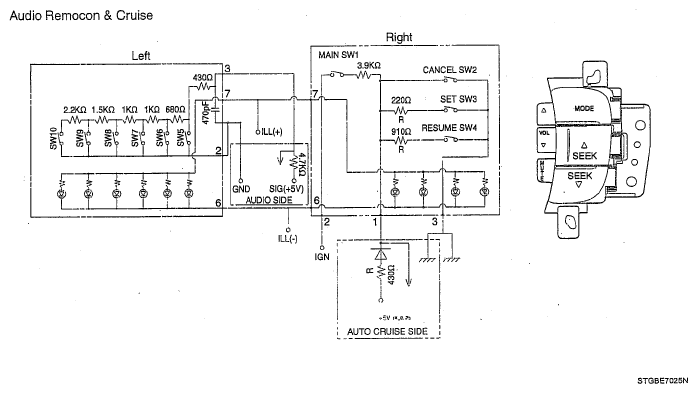

Fig 2: Audio Remote Control Circuit Diagram (Audio Remocon And Cruise)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
