Glass Replacement

NOTE:
  • Put on glove to protect your hands
  1. Remove both decoration cover (A).
    Fig 1: Identifying Decoration Cover
    G04881124Courtesy of HYUNDAI MOTOR CO.
  2. Remove the glass (A) by lifting it up.
    NOTE:
    • Do not damage the roof panel

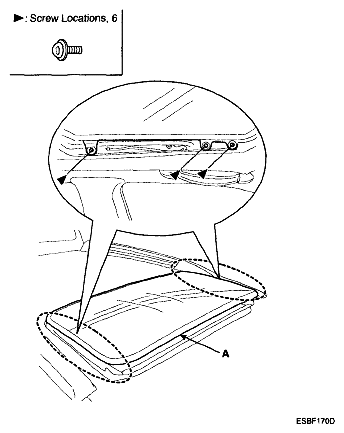

      Fig 2: Identifying Glass
      G04881125Courtesy of HYUNDAI MOTOR CO.
  3. Installation is the reverse of removal.
