Parking Brake: Components

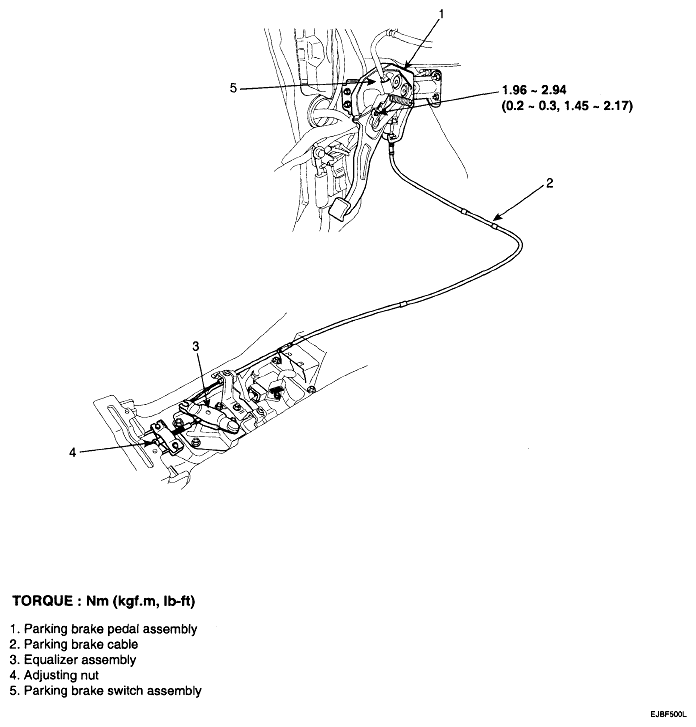

Fig 1: Parking Brake Replacement Components With Torque Specifications
G04880899Courtesy of HYUNDAI MOTOR CO.

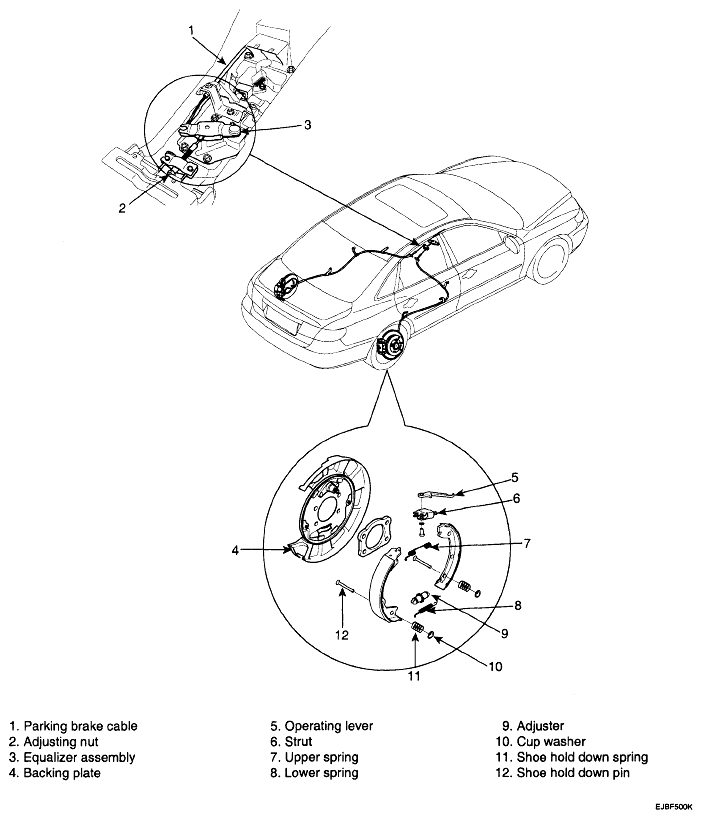

Fig 2: Identifying Parking Brake Components
G04880900Courtesy of HYUNDAI MOTOR CO.
