Front Driveshaft Assembly: Installation

CAUTION: Replace the circlip with new ones after removal.

Apply gear oil on the drive shaft splines (A) and the contacting surface of differential case oil seal (B).

Fig 1: Identifying Drive Shaft Splines And Differential Case Oil Seal
Courtesy of HYUNDAI MOTOR CO.
After installation, check if the drive shaft can not be removed.
[RH]

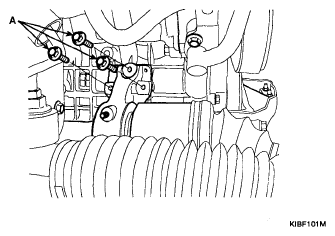

1. Install the inner shaft bracket mounting bolt (A).
  Tightening Torque Nm (kgf.m, lb-ft):

  50 ~ 65 (5 ~ 6.5, 36 ~ 47)

  Fig 2: Identifying Inner Shaft Bracket Mounting Bolts
  Courtesy of HYUNDAI MOTOR CO.

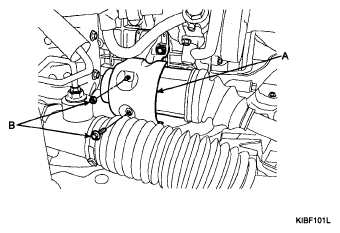

2. Install the inner shaft cover (A) by installing the cover mounting bolts (B).
  Tightening Torque Nm (kgf.m, lb-ft):

  9 ~ 14 (0.9 ~ 1.4, 6.5 ~ 10)

  Fig 3: Identifying Inner Shaft Cover
  Courtesy of HYUNDAI MOTOR CO.

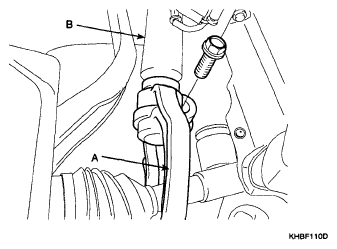

3. Install the fork (A) to the front strut assembly (B).
  Tightening Torque Nm (kgf.m, lb-ft):

  60 ~ 80 (6 ~ 8, 44 ~ 59)

  Fig 4: Identifying Fork And Front Strut Assembly
  Courtesy of HYUNDAI MOTOR CO.
4. Install the connecting bolt between the fork (A) and the lower arm.
  Tightening Torque Nm (kgf.m, lb-ft):

  140 ~ 160 (14 ~ 16, 101 ~ 118)

  Fig 5: Identifying Fork
  Courtesy of HYUNDAI MOTOR CO.

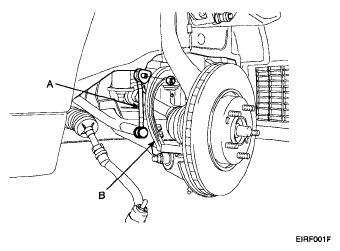

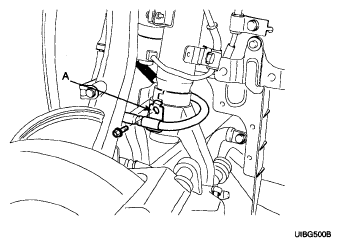

5. Install the stabilizer link (A) to the fork (B).
  Tightening Torque Nm (kgf.m, lb-ft):

  100 ~ 120 (10 ~ 12, 74 ~ 88)

  Fig 6: Identifying Stabilizer Link And Fork
  Courtesy of HYUNDAI MOTOR CO.
Install the drive shaft (A) into the front axle assembly (B).
CAUTION: Be careful not to damage the boot.

Fig 7: Identifying Drive Shaft And Front Axle Assembly
Courtesy of HYUNDAI MOTOR CO.
Install the knuckle in the lower arm assembly and tighten the bolts (A).
Tightening Torque Nm (kgf.m, lb-ft):

100 ~ 120 (10 ~ 12, 74 ~ 88)

Fig 8: Identifying Knuckle Bolts
Courtesy of HYUNDAI MOTOR CO.

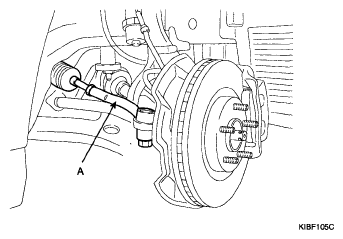

Install the tie rod end (A) in the knuckle.
Tightening Torque Nm (kgf.m, lb-ft):

24 ~ 34 (2.4 ~ 3.4, 18 ~ 25)

Fig 9: Identifying Tie Rod End
Courtesy of HYUNDAI MOTOR CO.
Install the wheel speed sensor in the knuckle.

Fig 10: Identifying Wheel Speed Sensor Bolt
Courtesy of HYUNDAI MOTOR CO.

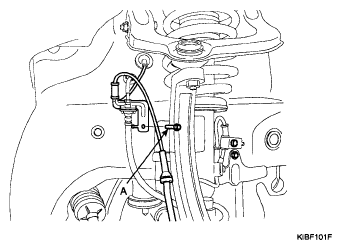

Install the brake hose bracket (A) to the front knuckle.

Fig 11: Identifying Brake Hose Bracket
Courtesy of HYUNDAI MOTOR CO.
After installing the washer (B) with convex surface outward, install the lock nut (A) and the split pin (C).
Tightening Torque Nm (kgf.m, lb-ft):

200~280 (20~28, 148~207)

Fig 12: Identifying Washer, Lock Nut And Split Pin
Courtesy of HYUNDAI MOTOR CO.
Install the wheel & tire assembly.
