Charging System: Alternator: Component

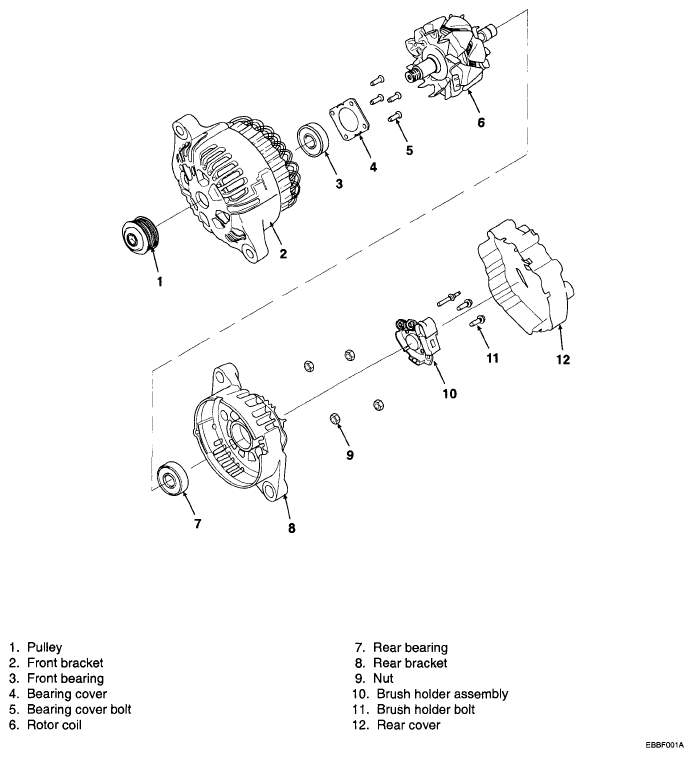

Fig 1: Exploded View Of Alternator
G04879727Courtesy of HYUNDAI MOTOR CO.
