Cooling System: Installation: Radiator

Install the radiator fan (A) to the radiator.

Fig 1: Identifying Radiator Fan
Courtesy of HYUNDAI MOTOR CO.
Install the radiator (A).

Fig 2: Identifying Radiator
Courtesy of HYUNDAI MOTOR CO.
Install the radiator bracket (A).

Fig 3: Identifying Radiator Bracket
Courtesy of HYUNDAI MOTOR CO.
Reconnect the radiator fan connector (A).

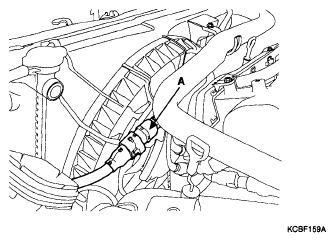

Fig 4: Identifying Radiator Fan Connector
Courtesy of HYUNDAI MOTOR CO.
Connect transaxle oil cooler hoses. (Refer to AUTOMATIC TRANSAXLE (A5HF1) -- AZERA )
Connect radiator upper and lower hoses (A).

Fig 5: Identifying Upper Radiator Hose And Lower Radiator Hose
Courtesy of HYUNDAI MOTOR CO.
Install the air duct (A).

Fig 6: Identifying Air Duct
Courtesy of HYUNDAI MOTOR CO.
Fill with engine coolant.
Start engine and check for leaks.
Recheck engine coolant level.
