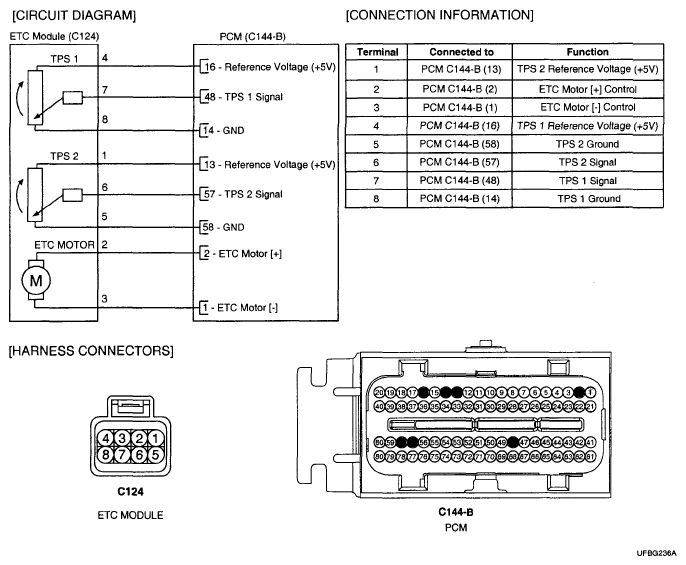

Home › Hyundai › 2007 › Azera GLS › Repair and Diagnosis › Engine Performance › Engine Control Systems › Fuel System (G6DB/G6DA - GSL 3.3/3.8) › Gasoline Engine Control System › Etc (Electric Throttle Control) System › Schematic Diagram
