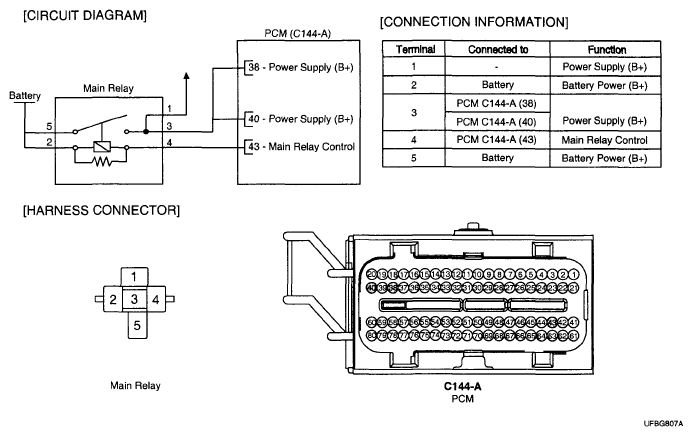

Home › Hyundai › 2007 › Azera GLS › Repair and Diagnosis › Engine Performance › System › Engine Control System Diagnosis (2 Of 2) › DTC Troubleshooting Procedures › DTC P0685 ECM/Pcm Power Relay Control Circuit / Open › Schematic Diagram
