Home › Hyundai › 2007 › Azera GLS › Repair and Diagnosis › Steering › Mechanical Power Steering System › Power Steering Oil Pump › Components

Power Steering Oil Pump: Components

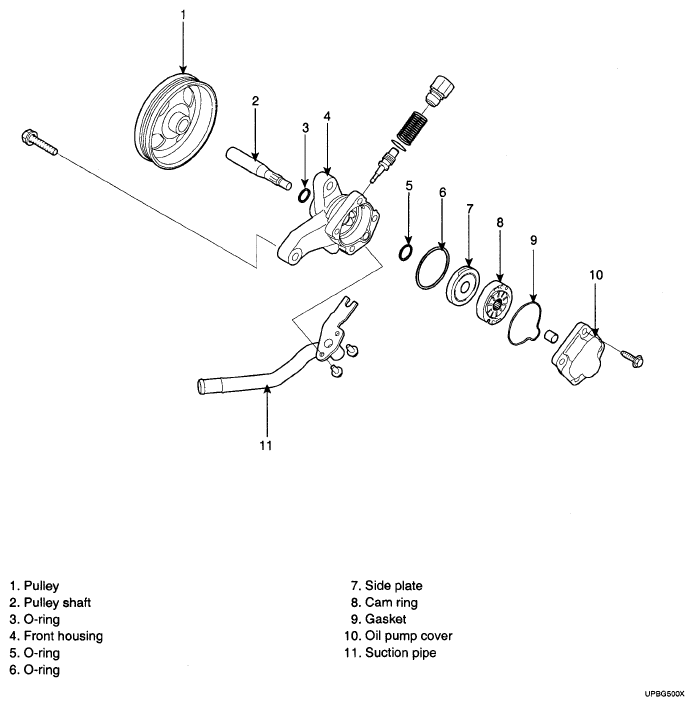

Fig 1: Identifying Power Steering Oil Pump Components
G04880602Courtesy of HYUNDAI MOTOR CO.
