Power Window Motor Replacement

  1. Remove the door trim (See REPLACEMENT  ).
  2. After disconnecting the connector (A), remove the power window motor (B).

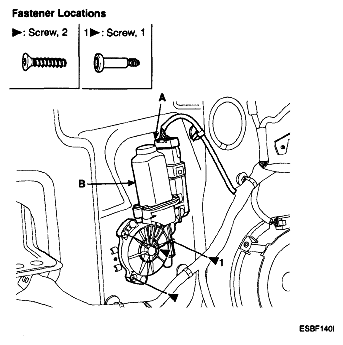

    Fig 1: Identifying Connector And Power Window Motor
    G04881070Courtesy of HYUNDAI MOTOR CO.
  3. Installation is the reverse of removal.
    NOTE:
    • Roll the glass up down to see if it move freely without binding.
