Hood Insulator Replacement

  1. Using a clip remover, detach the clips, and remove the hood insulator (A).
    NOTE:
    • Take care not to scratch the hood panel.

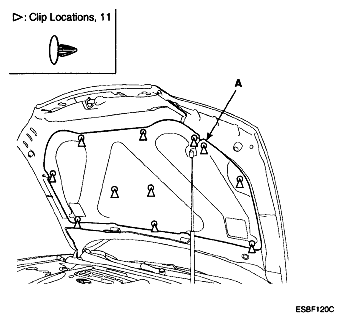

      Fig 1: Identifying Hood Insulator
      G04881044Courtesy of HYUNDAI MOTOR CO.
  2. Installation is the reverse of removal.
    NOTE:
    • Replace any damaged clips.
