Power Window Relay: Troubleshooting

1. No windows operate from the main switch on the driver's door.

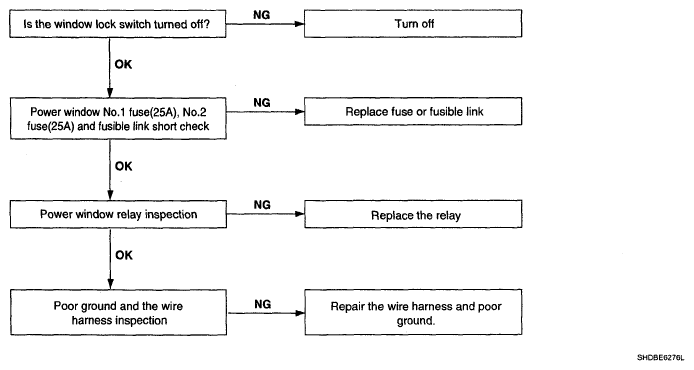

   Fig 1: No Windows Operate From Main Switch - Troubleshooting Chart

   Courtesy of HYUNDAI MOTOR CO.
2. Driver's side window does not operate.

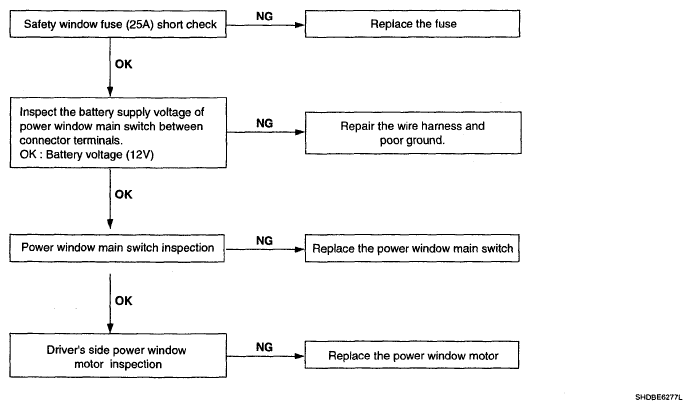

   Fig 2: Driver's Side Window Does Not Operate - Troubleshooting Chart

   Courtesy of HYUNDAI MOTOR CO.
3. Passenger's side window does not operate.

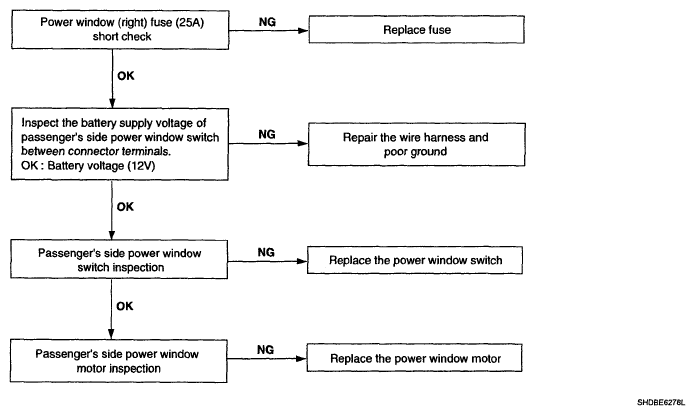

Fig 3: Passenger's Side Window Does Not Operate - Troubleshooting Chart

Courtesy of HYUNDAI MOTOR CO.
