Power Outside Mirror Switch 12-Pin Connector End View
Power Outside Mirror Switch 12-Pin Connector End View

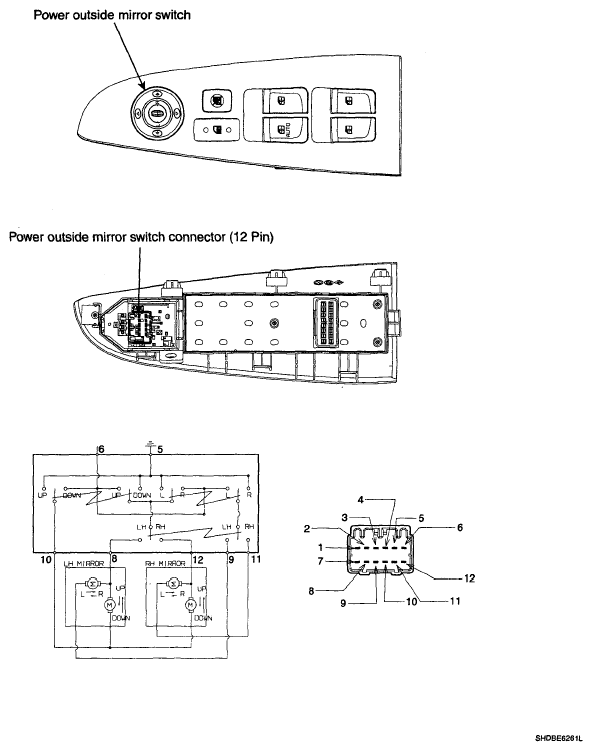

Fig 1: Power Outside Mirror Switch 12-Pin Connector End View
