Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|

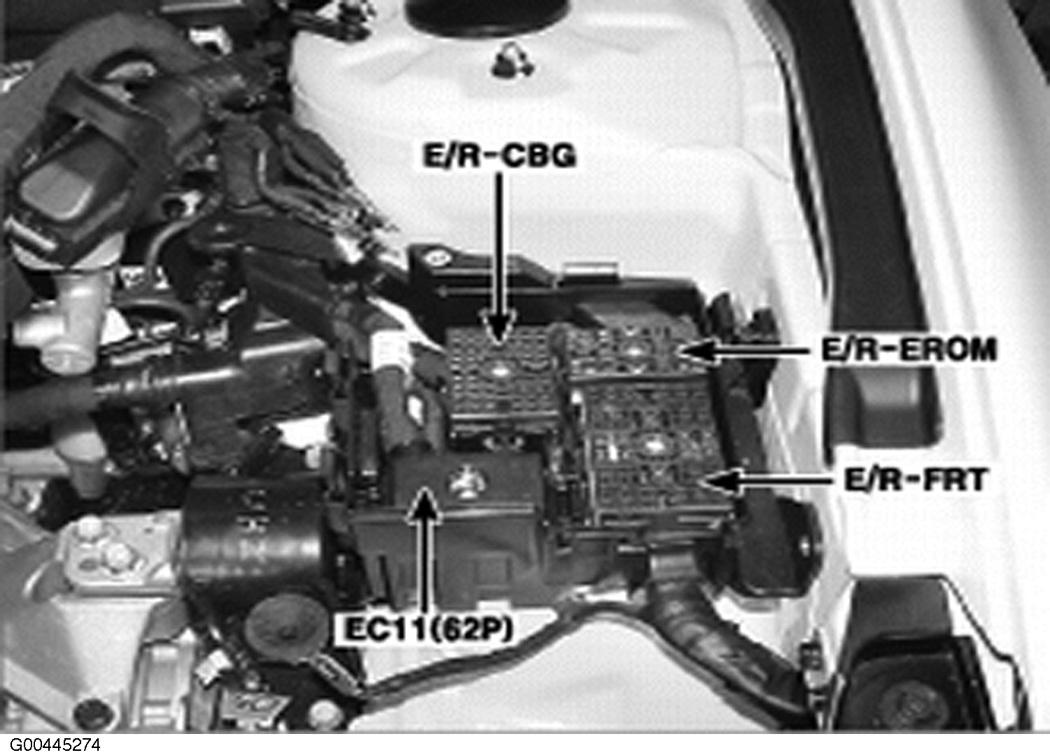

| Engine Compartment Relay & Fuse Box | In left front corner of engine compartment. See Figure. |

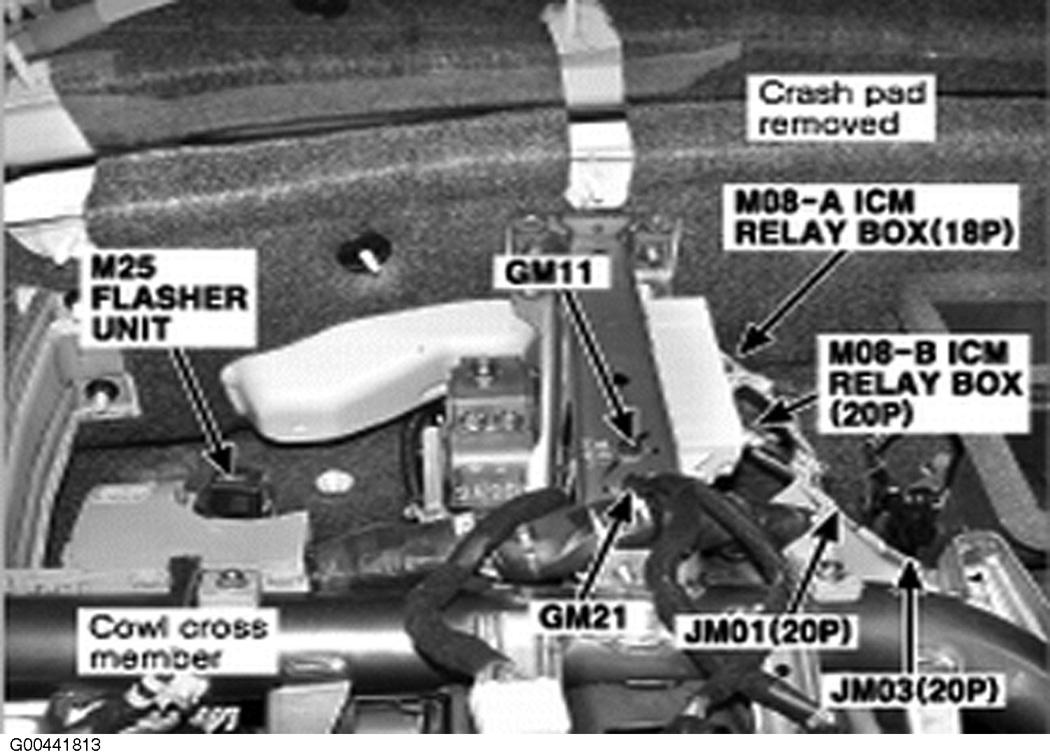

| ICM Relay Box (M08-A) | Under left side of dash. See Figure. |
| ICM Relay Box (M08-B) | Under left side of dash. See Figure. |

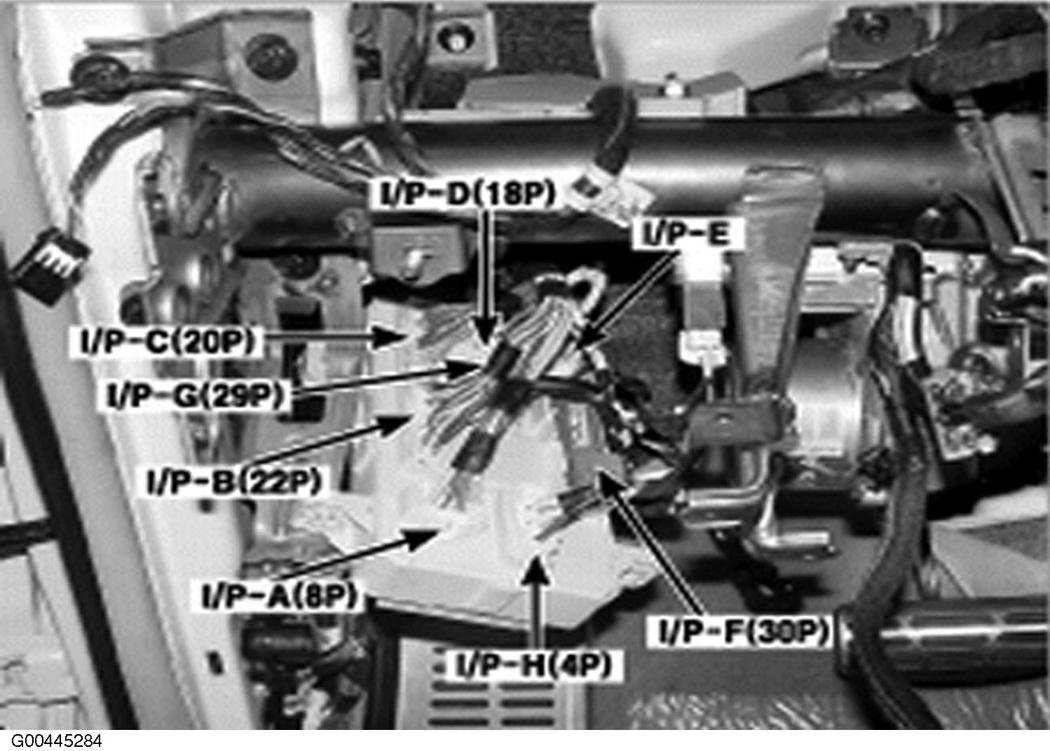

| Passenger Compartment Junction Block | Under left side of dash, near kick panel. See Figure. |
