Immobilizer Control System
›
Immobilize Control System
›
Circuit Diagram
Circuit Diagram

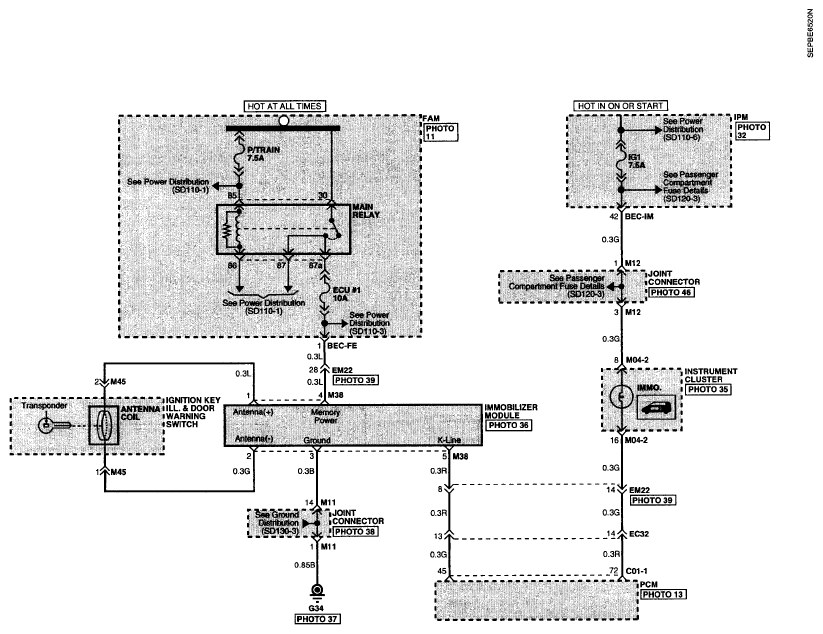

Fig 1: Immobilizer Control System - Circuit Diagram (1 Of 2)
Courtesy of HYUNDAI MOTOR CO.
Fig 2: Immobilizer Control System - Circuit Diagram (2 Of 2)
Courtesy of HYUNDAI MOTOR CO.
