Audio Unit: Replacement: Notes

Disconnect the negative (-) battery terminal.
Remove the center facia panel, console lower cover, center air vent, switches, tray and heater control panel (A). (Refer to CRASH PAD ).

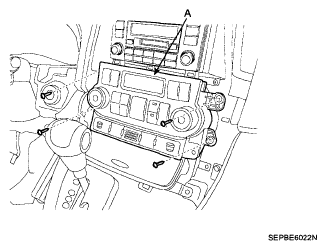

Fig 1: Identifying Heater Control Panel Screws
Courtesy of HYUNDAI MOTOR CO.
Remove the mounting 4 screws then remove the audio unit (A).

Fig 2: Identifying Audio Unit Screws
Courtesy of HYUNDAI MOTOR CO.
Installation is the reverse of removal.
