Fuel Delivery System: Components

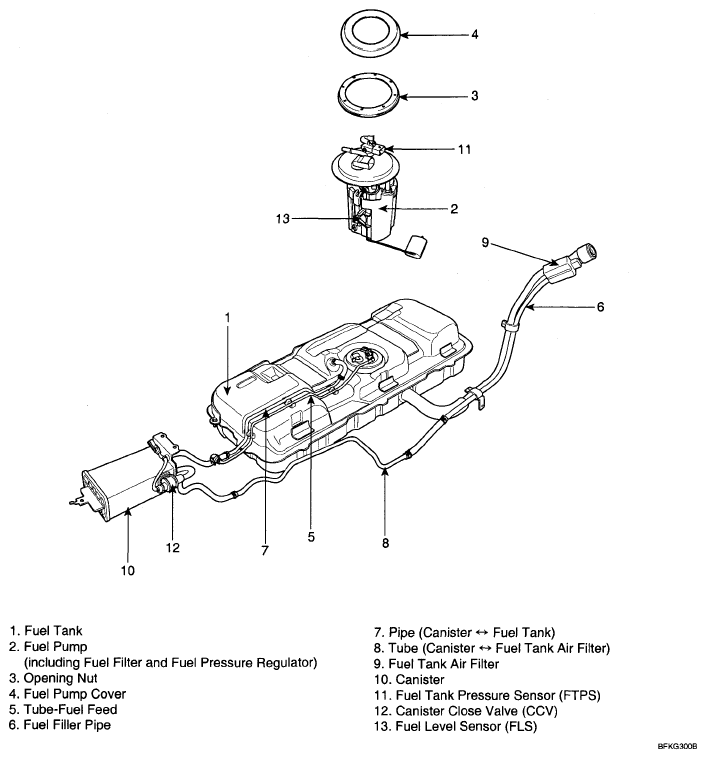

Fig 1: Identifying Fuel Delivery System Components
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
