Occupant Classification System - Service Reset Procedure (09-BE-002)

Publication date: 2009-03-01
Reference number: 09-BE-002

OCCUPANT CLASSIFICATION SYSTEM - SERVICE RESET PROCEDURE

TECHNICAL SERVICE BULLETIN

Reference Number(s): 09-BE-002, Date of Issue: March 01, 2009

HYUNDAI:	2009 SONATA; 2007-08 ENTOURAGE 2007-09 ELANTRA & VERACRUZ
GROUP:	ELECTRICAL

DESCRIPTION

The current Sonata, Entourage, Elantra and Veracruz shop manuals do not provide the Occupant Classification System reset procedure using the GDS tool. This bulletin provides the procedure to reset the Occupant Classification System's electronic control unit (referred to as WCS (Weight Classification System) ECU on the GDS display screen) using the GDS tool. This reset procedure should be performed after replacing the front passenger seat cover, seat cushion pad, or seat cushion assembly.

Please write this TSB number at the bottom of the appropriate pages in the Shop Manuals, under the Restraints Section (RT), for future reference.

NOTE: Refer to the Owner's Manual section "Occupant Classification System" or the Service Shop Manual, under the Restraints Section, for details regarding the WCS ECU and diagnosis.

WCS ECU RESET PROCEDURE

Check that the front passenger seat and the back pocket are empty.
Confirm the right front seat belt is not buckled.

Adjust the seat position according to the table below:

ITEM SPECIFICATION

ITEM	REMARK
Seat Track Position	Rearmost position
Seat Recliner Angle	Normal upright position
Head Rest Position	Lowest Position
Seat Height Position	Lowest Position

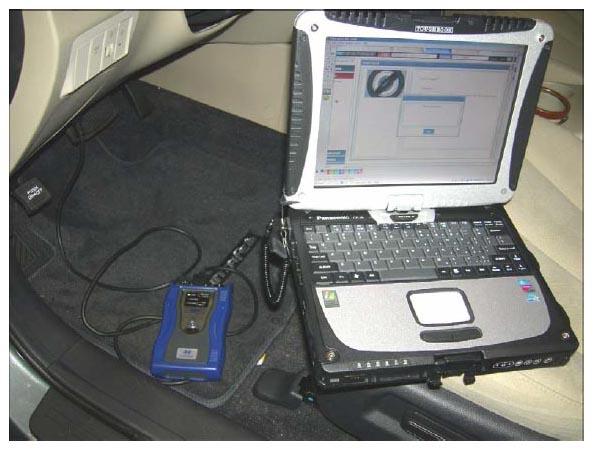

Connect the GDS VCI module to the vehicle's DLC connector and open the GDS program.

Fig 1: Connecting GDS VCI Module To Vehicle's DLC Connector
Turn on vehicle ignition and make sure the green power LED is illuminated on the VCI; if it is not illuminated press on the power button of the VCI. Within a few seconds, the GDS screen should indicate "VCI:USB On" in bright blue to the left of the VIN button on the screen.

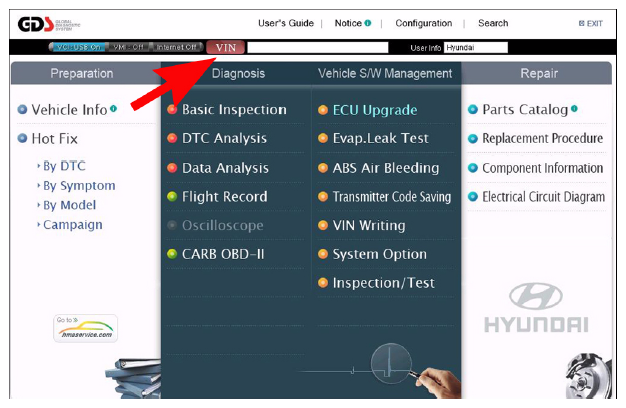

Press the VIN button at the top of the screen to launch the GDS VIN search screen.

Fig 2: Screen Display - VIN Button

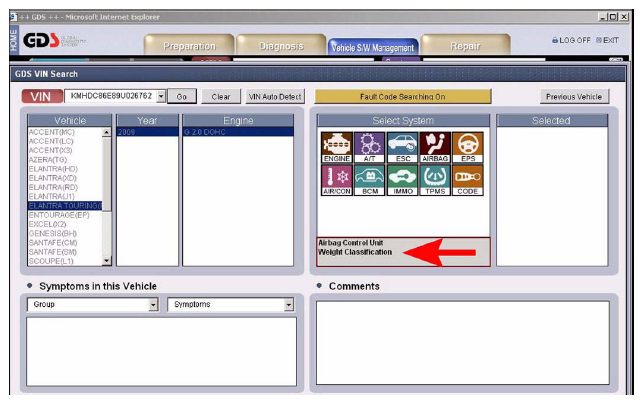

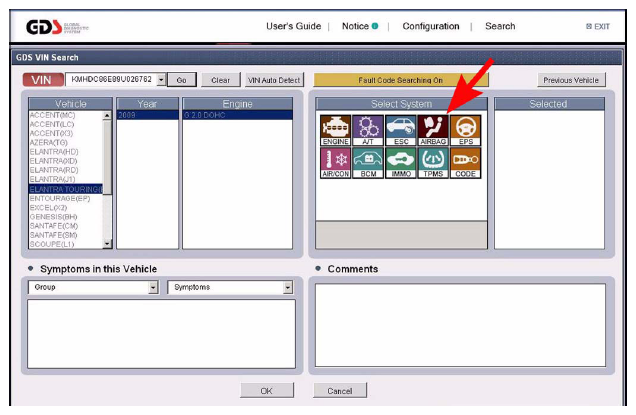

Press the "VIN Auto Detect" button to automatically read the vehicle's VIN (or you will need to manually enter vehicle, year, and engine if it does not automatically read this information) then select the "AIRBAG" system.

Fig 3: Screen Display - VIN Auto Detect
Select "Weight Classification".

Fig 4: Screen Display - Weight Classification

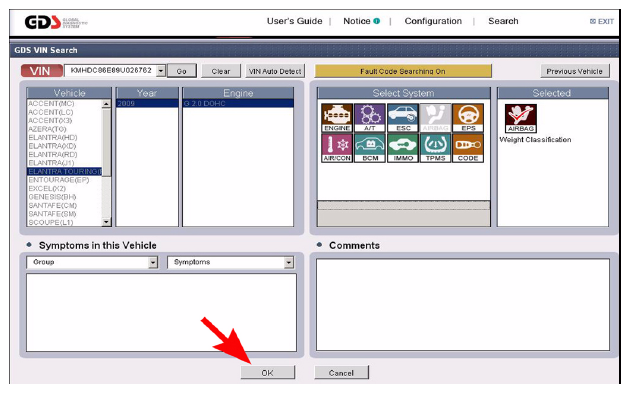

Press the "OK" button at the bottom of the screen.

Fig 5: Screen Display - OK

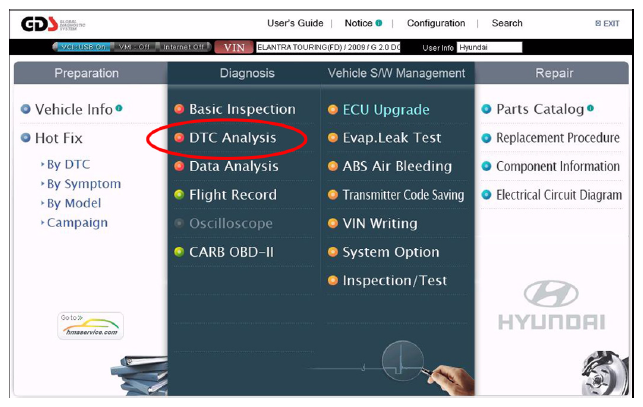

On the following screen, press "DTC ANALYSIS". If there are diagnostic code(s) stored in the main SRS Control Module, the code(s) must be repaired first before starting the WCS ECU reset procedure.

Fig 6: Screen Display - DTC Analysis

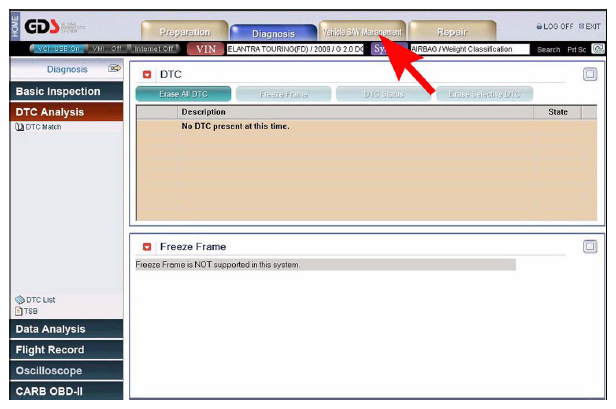

Press the "Vehicle S/W Management" tab on the GDS screen.

Fig 7: Screen Display - Vehicle S/W Management

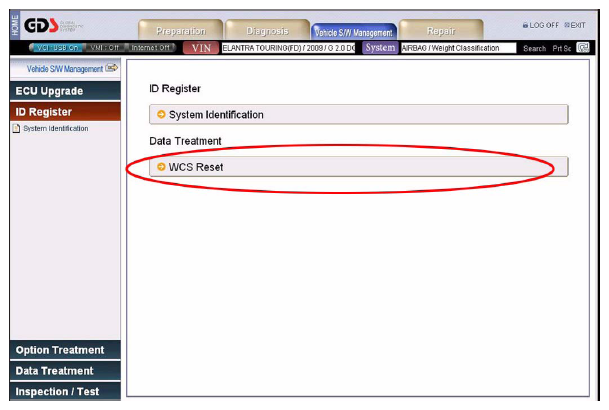

Press "WCS Reset".

Fig 8: Screen Display - WCS Reset

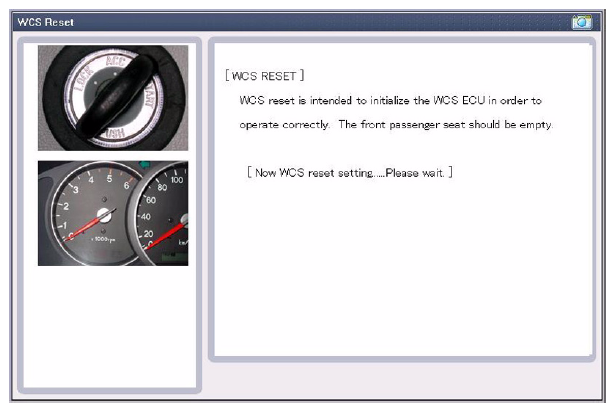

The following screen appears after the WCS Reset button is pressed:

Fig 9: Screen Display - WCS Reset Button
After a few seconds, the following screen will appear. Press the "OK" button.

Fig 10: Screen Display - OK

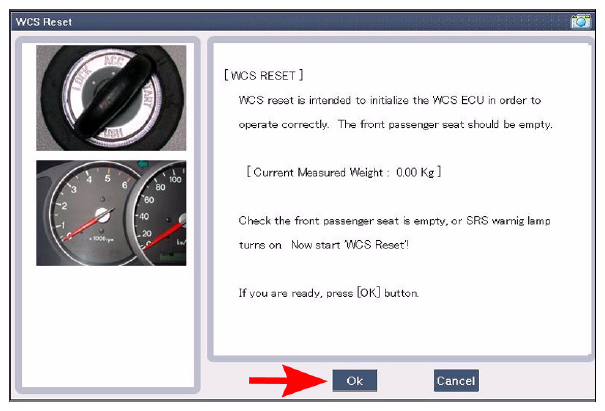

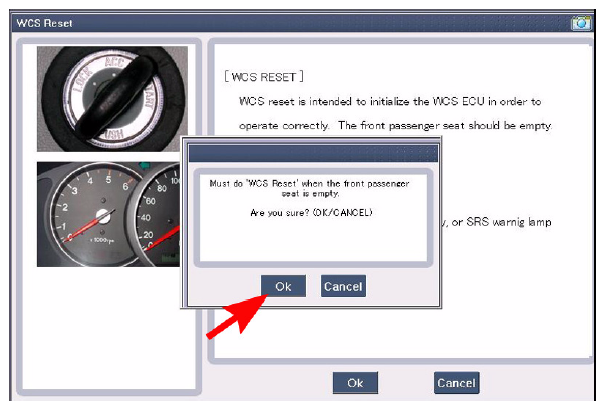

Make sure the front passenger seat is empty and press "OK" to begin the WCS reset procedure.

Fig 11: Screen Display - OK

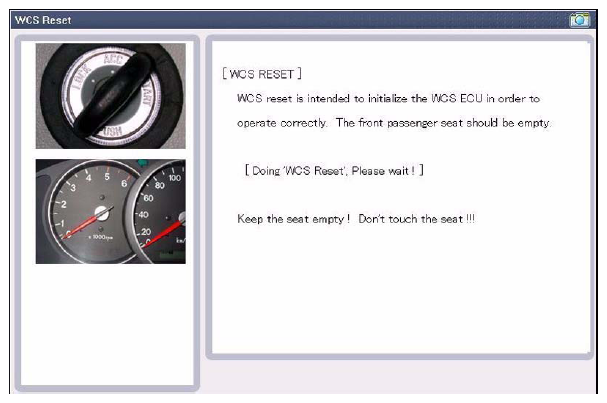

Wait a few seconds for the GDS to reset the WCS ECU.

Fig 12: Screen Display - WCS ECU

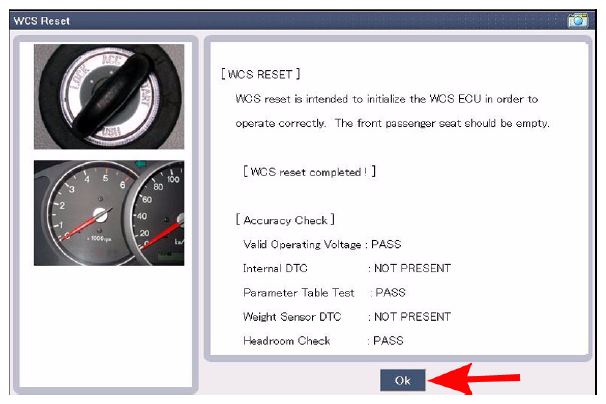

Once the reset is complete, press "OK" to exit the WCS Reset menu.

Fig 13: Screen Display - OK
Confirm proper operation of WCS.

WARRANTY INFORMATION

Applicable warranty coverage applies.
