Outside Handle Replacement

Remove the door trim. (See REPLACEMENT )
Remove the door trim seal.
Disconnect the connector (A).

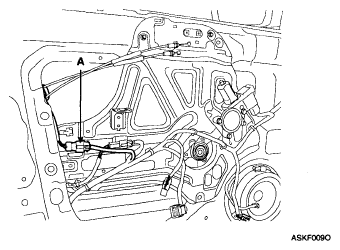

Fig 1: Identifying Door Trim Seal And Connector
Courtesy of HYUNDAI MOTOR CO.
Disconnect the lock rod (A) and outside handle rod (B).

Fig 2: Identifying Lock Rod And Outside Handle Rod
Courtesy of HYUNDAI MOTOR CO.
Loosen the outside handle mounting bolts, remove the outside handle bracket (A).

Fig 3: Outside Handle Bracket With Torque Specifications
Courtesy of HYUNDAI MOTOR CO.
After removing the outside handle mounting bolts, remove the outside handle (A).

Fig 4: Outside Handle Mounting Bolts With Torque Specifications
Courtesy of HYUNDAI MOTOR CO.
Installation is the reverse the removal.

NOTE: Make sure the door locks and opens properly.
