Front Strut Assembly: Components

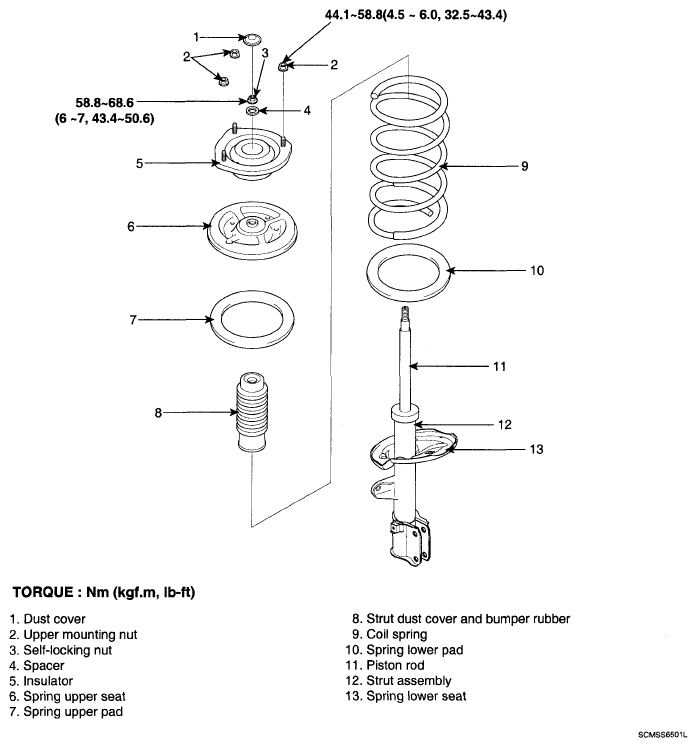

Fig 1: Identifying Front Strut Assembly Components
G05350109Courtesy of HYUNDAI MOTOR CO.
