Coupling Assembly: Components

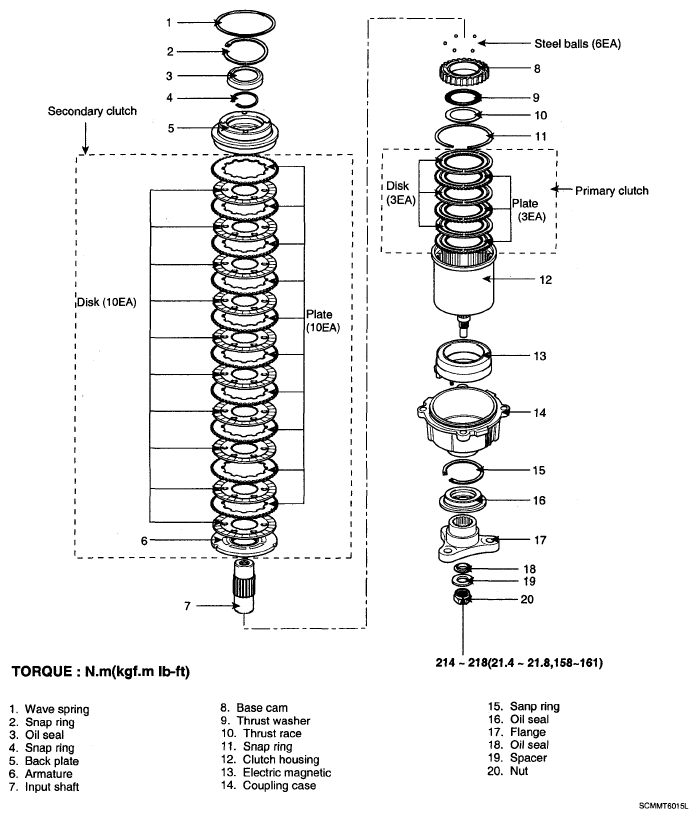

Fig 1: Identifying Coupling Assembly Components
G05348344Courtesy of HYUNDAI MOTOR CO.
