Manual Transaxle System (M5GF2)
›
Transfer Case Assembly
›
System Schematics
›
Control Algorithm Flow Chart
Control Algorithm Flow Chart

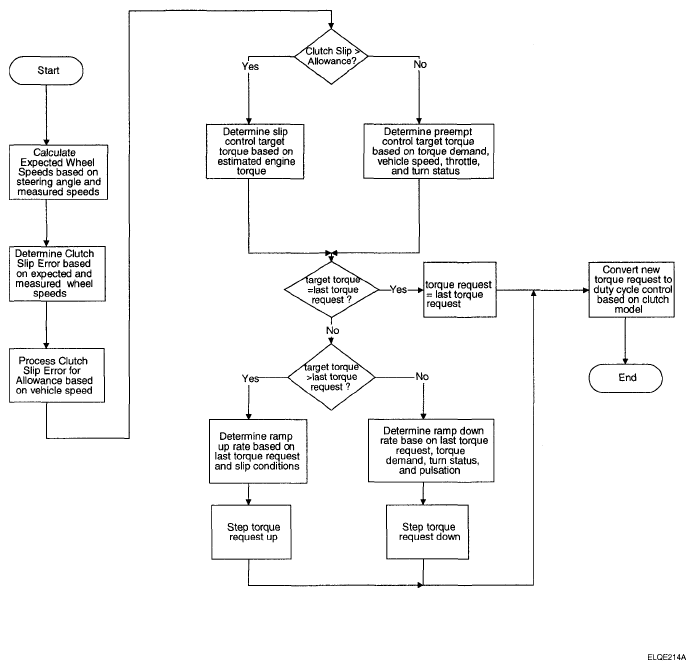

The base control algorithm of the ITM ECM is defined by the following flowchart:
Fig 1: Control Algorithm Flow Chart
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
