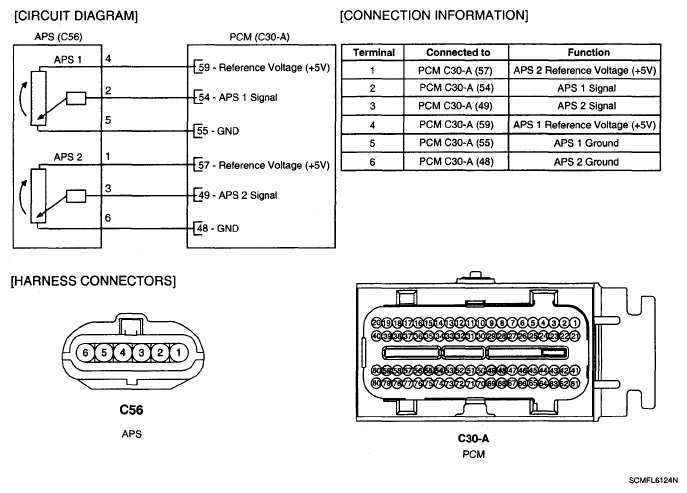

Home › Hyundai › 2007 › Santa Fe GLS, FWD, Standard › Repair and Diagnosis › Engine Performance › Engine Control Systems › Fuel System (G6EA-GSL 2.7) › Gasoline Engine Control System › Accelerator Position Sensor (APS) › Inspection › Circuit Diagram
