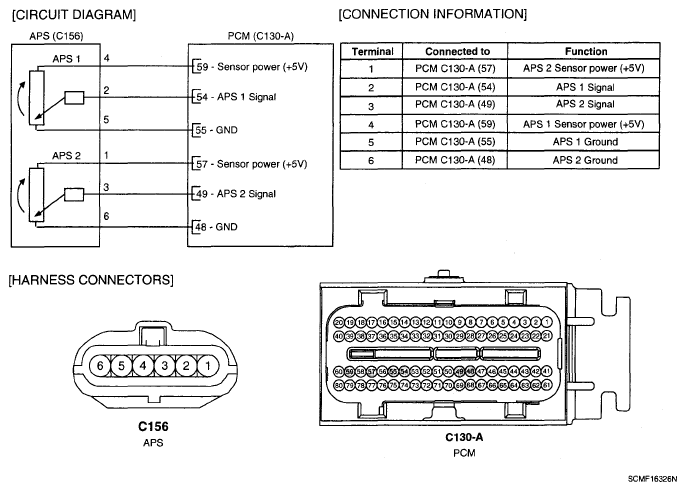

Home › Hyundai › 2007 › Santa Fe Limited, AWD › Repair and Diagnosis › Engine Performance › Engine Control Systems › Fuel System (G6DA-GSL 3.3) › Gasoline Engine Control System › Accelerator Position Sensor (APS) › Inspection › Schematic Diagram
