Supplemental Restraint System Control Module Connector End Views
Supplemental Restraint System Control Module Connector End Views

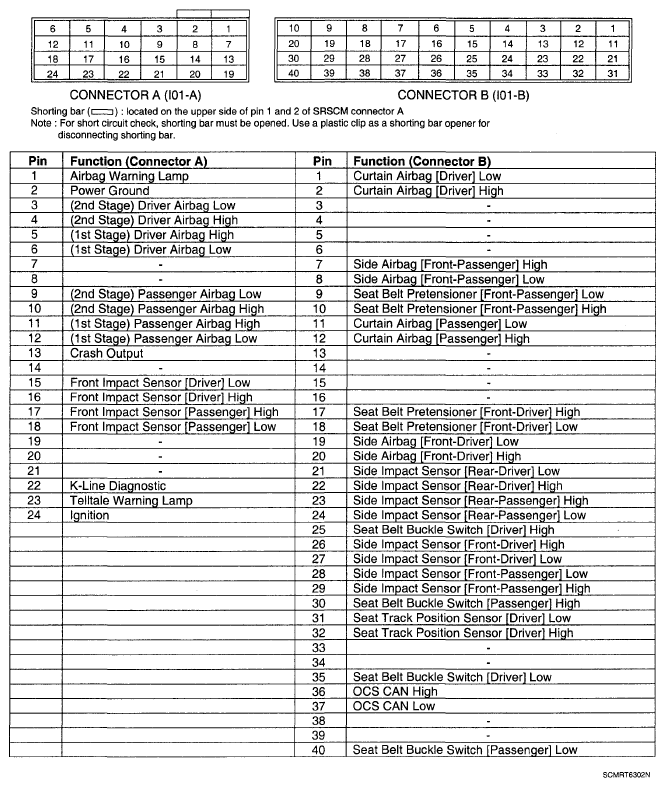

Fig 1: Supplemental Restraint System Control Module Connector End Views
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
