Power Windows
›
Power Window Switch
›
Components
›
Power Window Main Switch
Power Window Main Switch

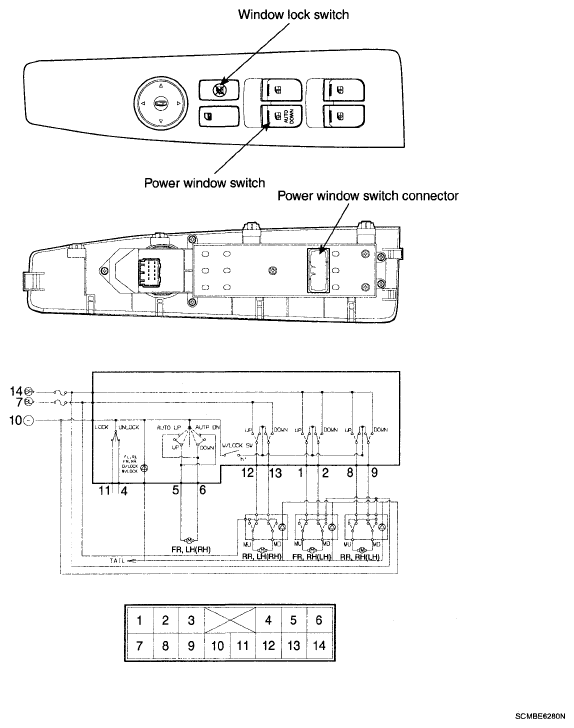

Fig 1: Identifying Power Window Main Switch Components
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
