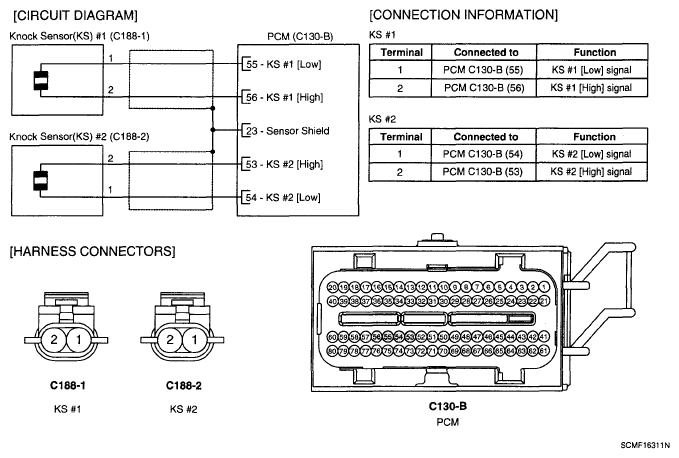

Home › Hyundai › 2007 › Santa Fe SE, AWD › Repair and Diagnosis › Engine Performance › Engine Control Systems › Fuel System (G6DA-GSL 3.3) › Gasoline Engine Control System › Knock Sensor (KS) › Inspection › Schematic Diagram
