Fuel Delivery System: Components

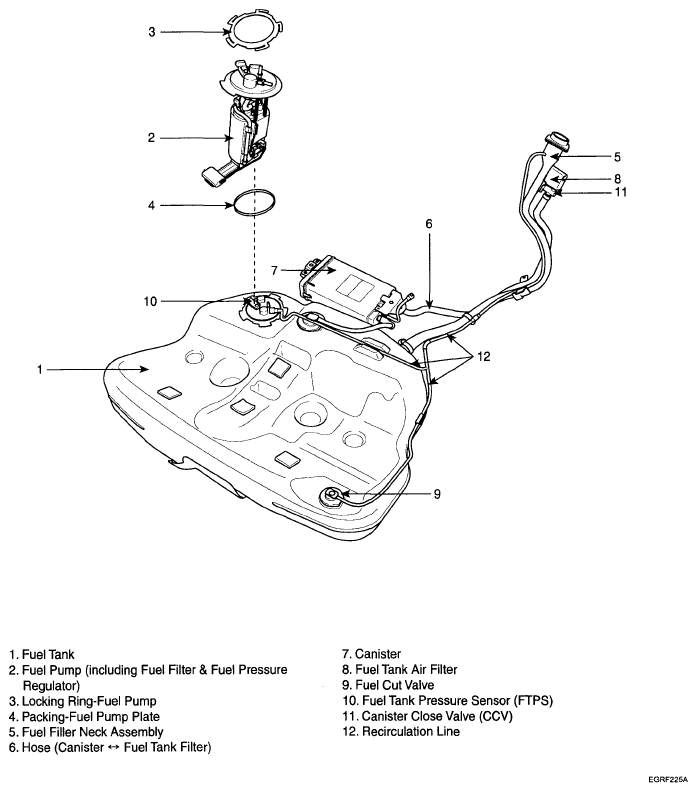

Fig 1: Identifying Fuel Delivery System Components Location
G04891150Courtesy of HYUNDAI MOTOR CO.
