Fuel System (G4KC-GSL 2.4)
›
Gasoline Engine Control System
›
Components Location
Components Location

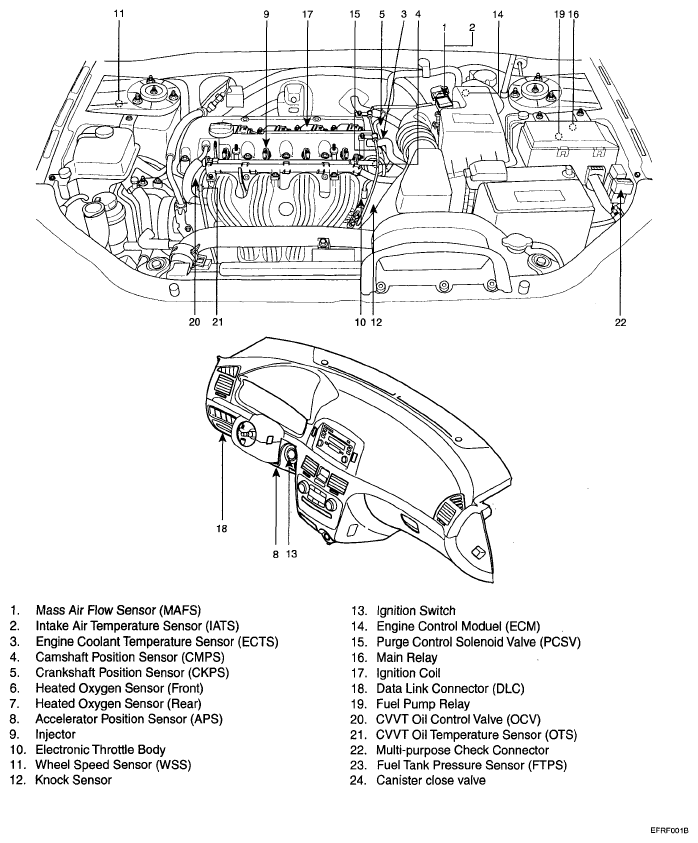

Fig 1: Identifying Gasoline Engine Control System Components (1 Of 4)
Courtesy of HYUNDAI MOTOR CO.

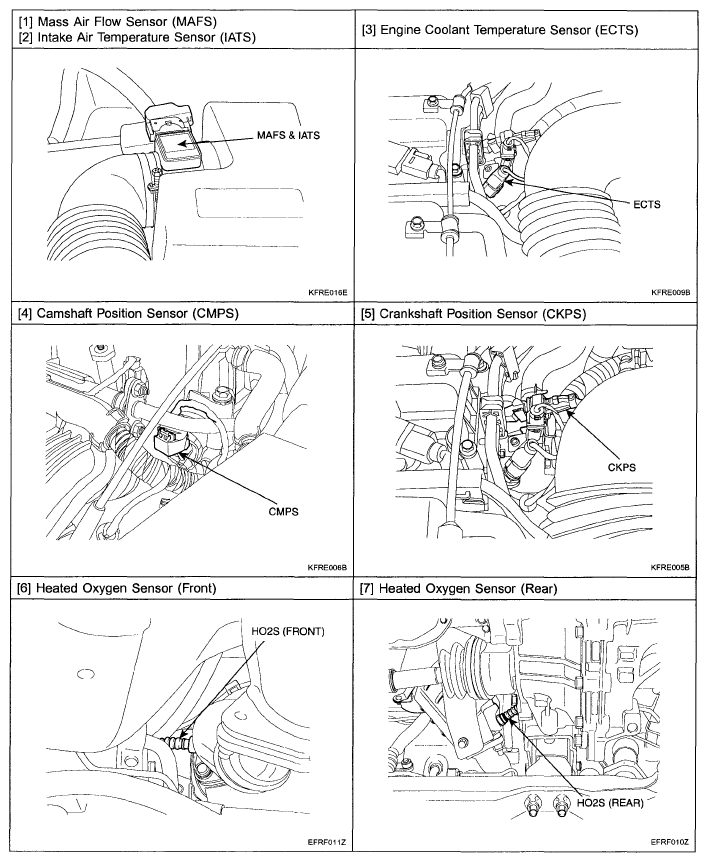

Fig 2: Identifying Gasoline Engine Control System Components (2 Of 4)
Courtesy of HYUNDAI MOTOR CO.

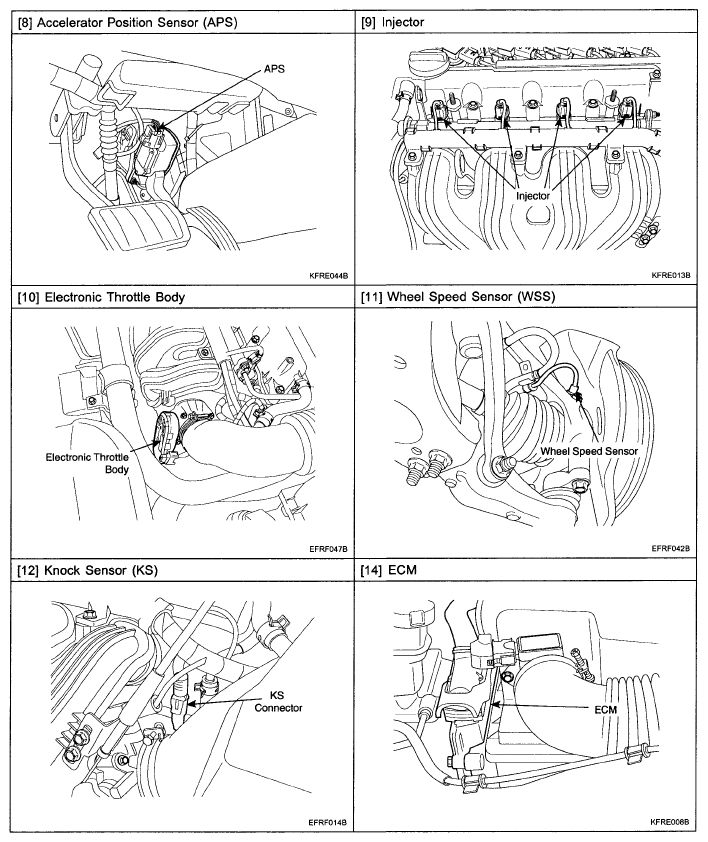

Fig 3: Identifying Gasoline Engine Control System Components (3 Of 4)
Courtesy of HYUNDAI MOTOR CO.

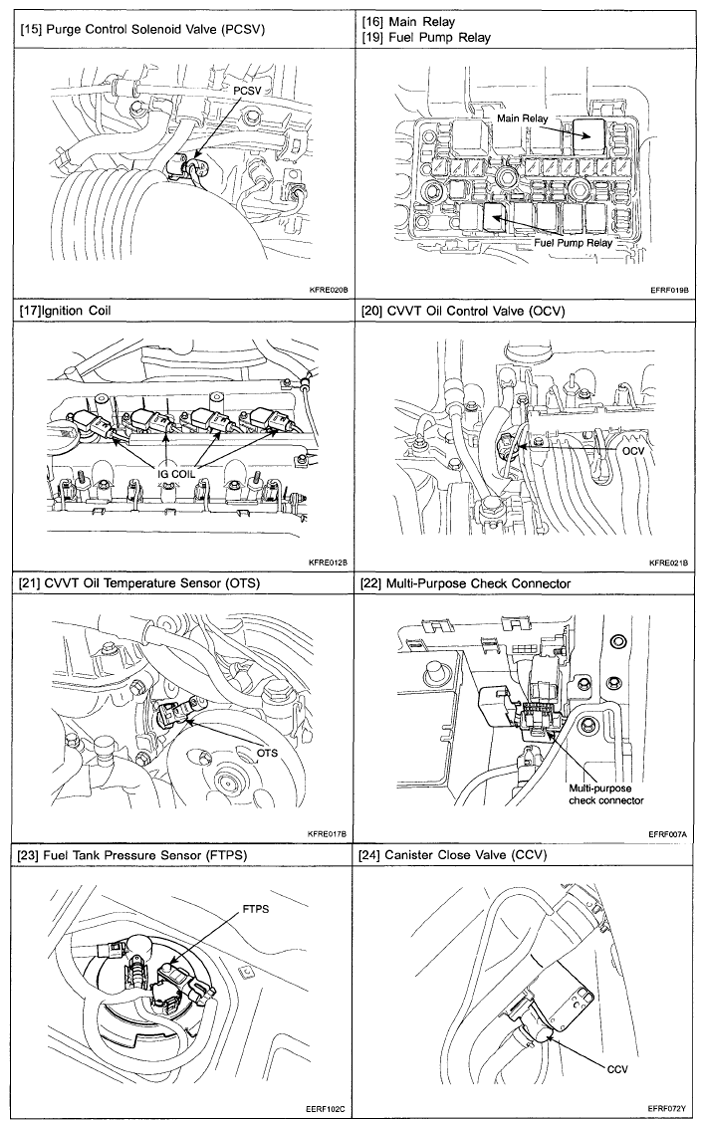

Fig 4: Identifying Gasoline Engine Control System Components (4 Of 4)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
