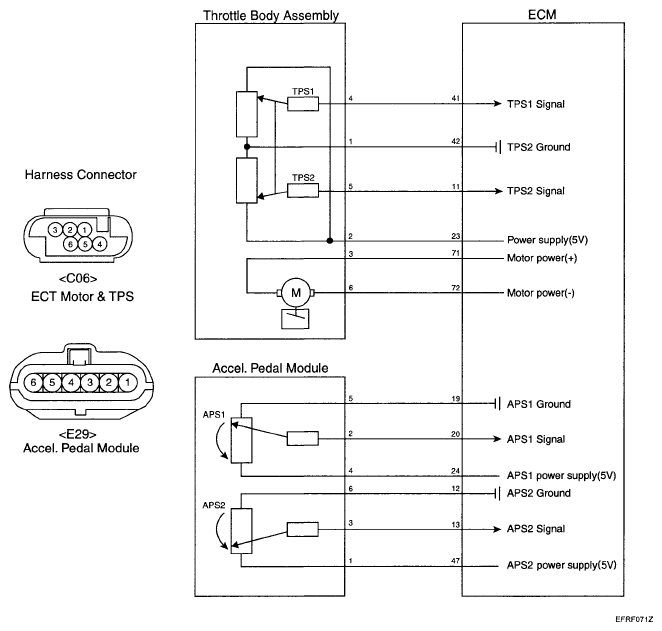

Home › Hyundai › 2007 › Sonata GLS, Automatic › Repair and Diagnosis › Engine Performance › Engine Control Systems › Fuel System (G4KC-GSL 2.4) › Gasoline Engine Control System › Electronic Throttle System (ETS) › Components › Circuit Diagram
