Shift Lever: Removal

Remove the center console cover (A) after disconnecting the connectors (3EA).

Fig 1: Identifying Center Console Cover
Courtesy of HYUNDAI MOTOR CO.
Remove the rear center console upper cover (A).

Fig 2: Identifying Rear Center Console Upper Cover
Courtesy of HYUNDAI MOTOR CO.
Remove the front center console upper cover (A).

Fig 3: Identifying Front Center Console Upper Cover
Courtesy of HYUNDAI MOTOR CO.
Remove the center console. (Screw : 6EA)

Fig 4: Identifying Center Console
Courtesy of HYUNDAI MOTOR CO.
Disconnect the sports mode connector (A).

Fig 5: Identifying Sports Mode Connector
Courtesy of HYUNDAI MOTOR CO.
Disconnect the control cable (A).

Fig 6: Identifying Control Cable
Courtesy of HYUNDAI MOTOR CO.

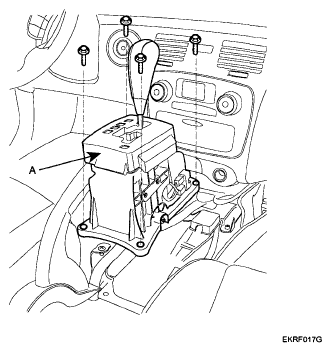

Remove the shift lever assembly (A) (Bolt : 4EA)

Fig 7: Identifying Shift Lever Assembly

Courtesy of HYUNDAI MOTOR CO.
