How To Connect

For vehicles with 16 pin Data Link connector (DLC), power is supplied from the DLC terminal through the DLC CABLE without the need for an additional power supply.

For connections between the Hi-scan and these vehicle data link terminals the DLC CABLE 16 is all that is required.

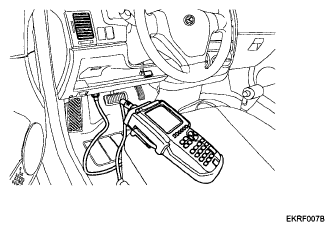

Fig 1: Identifying Data Link Connector And Scan Tool

Courtesy of HYUNDAI MOTOR CO.
