ESC Switch: Inspection

  1. Remove the ESC OFF switch from the switch panel on the crashpad of the driver's side.

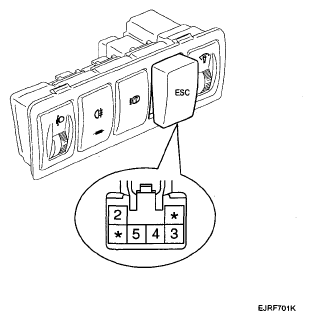

    Fig 1: Identifying ESC OFF Switch Connector Terminals
    G04892770Courtesy of HYUNDAI MOTOR CO.
  2. Check the continuity between the switch terminals as the ESC OFF switch is engaged.

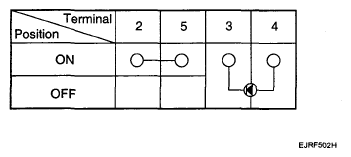

Fig 2: ESC OFF Switch Continuity Chart
G04892771Courtesy of HYUNDAI MOTOR CO.
