Charging System: Alternator: Component

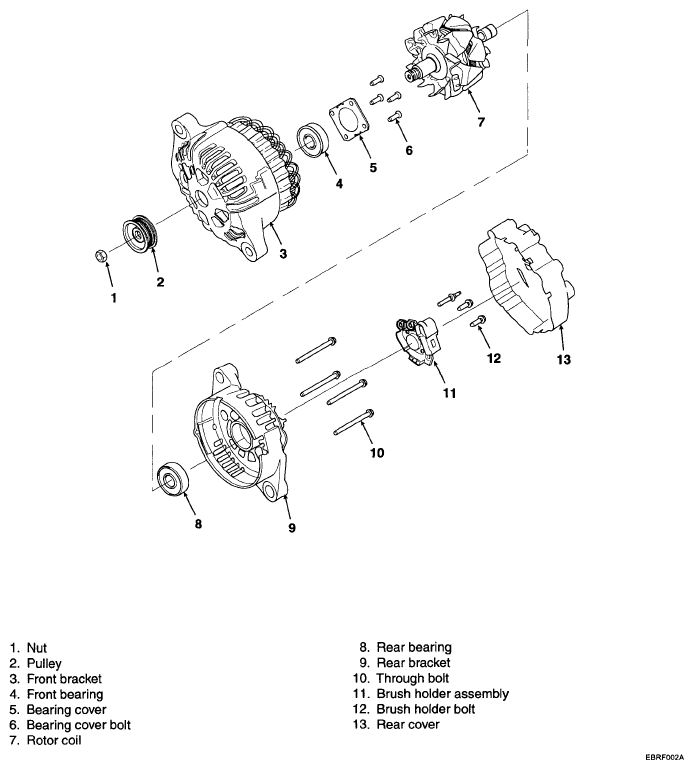

Fig 1: Exploded View Of Alternator Components
G04890729Courtesy of HYUNDAI MOTOR CO.
