Home › Hyundai › 2007 › Sonata Limited › Repair and Diagnosis › Electrical › Starter › Starting System › Starter › Component

Starting System: Starter: Component

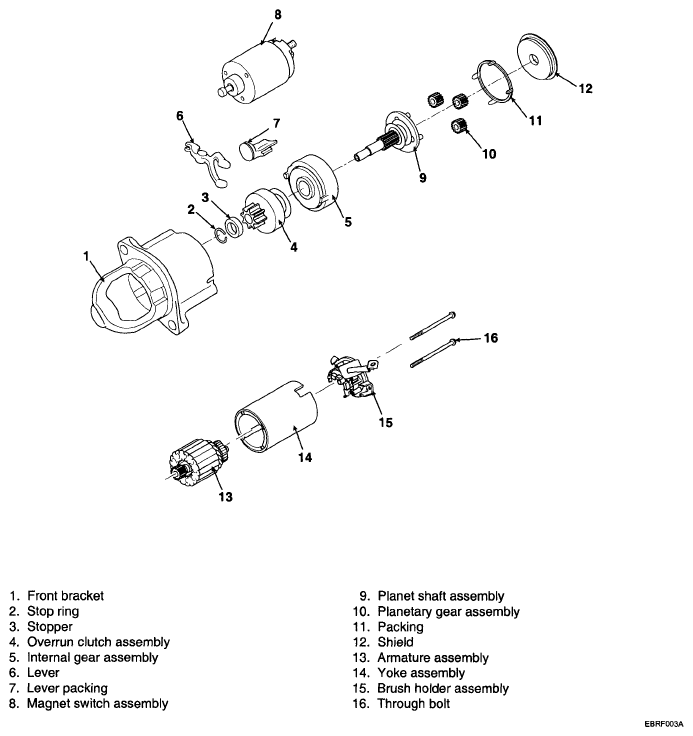

Fig 1: Exploded View Of Starter Motor Components
G04890750Courtesy of HYUNDAI MOTOR CO.
