Fuel Delivery System: Components

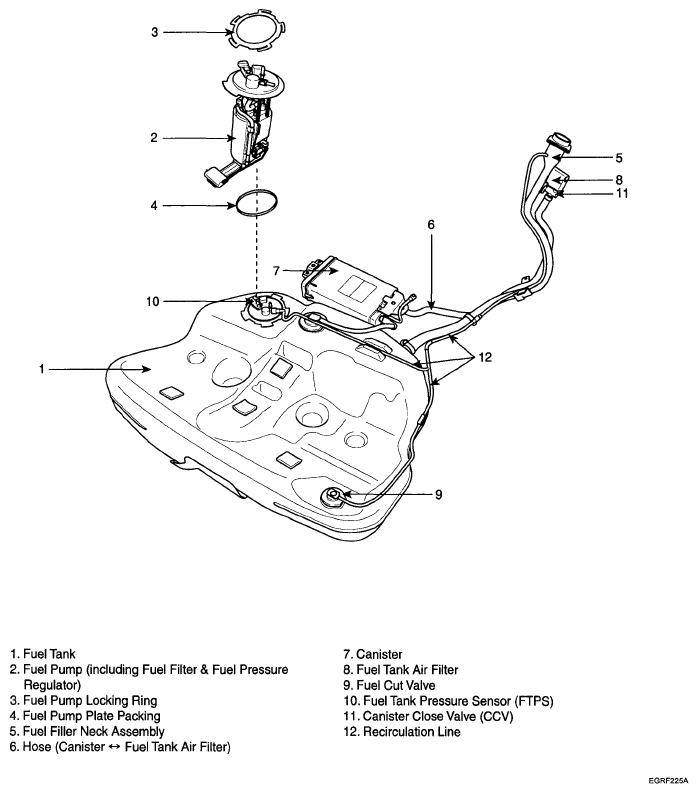

Fig 1: Identifying Fuel Delivery System Components
G04891602Courtesy of HYUNDAI MOTOR CO.
