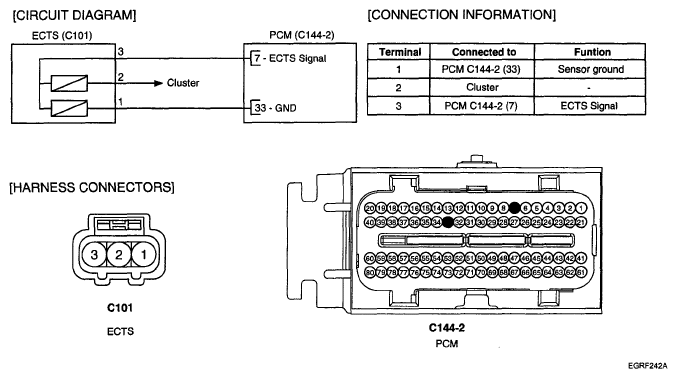

Home › Hyundai › 2007 › Sonata Limited › Repair and Diagnosis › Engine Performance › Engine Control Systems › Fuel System (G6DB-GSL 3.3) › Gasoline Engine Control System › Engine Coolant Temperature Sensor (ECTS) › Schematic Diagram
