Power Window Switch
›
Circuit Diagram
Circuit Diagram

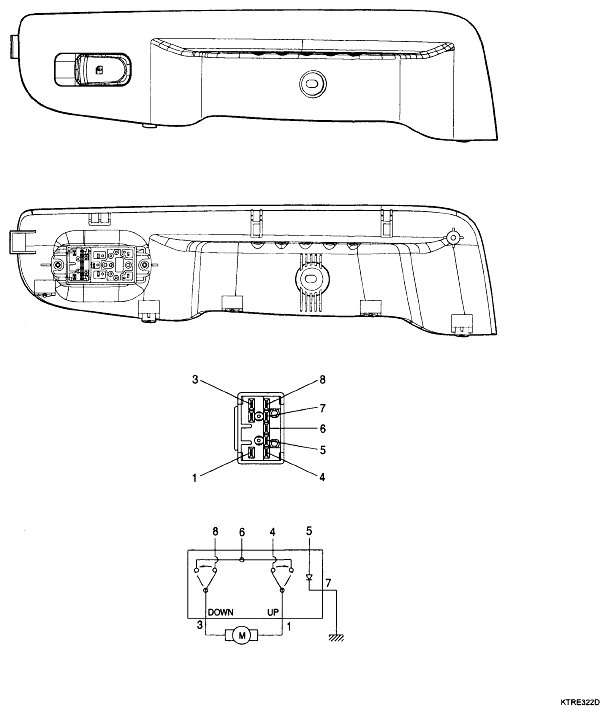

Fig 1: Power Window Switch Circuit Diagram (1 Of 3)
Courtesy of HYUNDAI MOTOR CO.

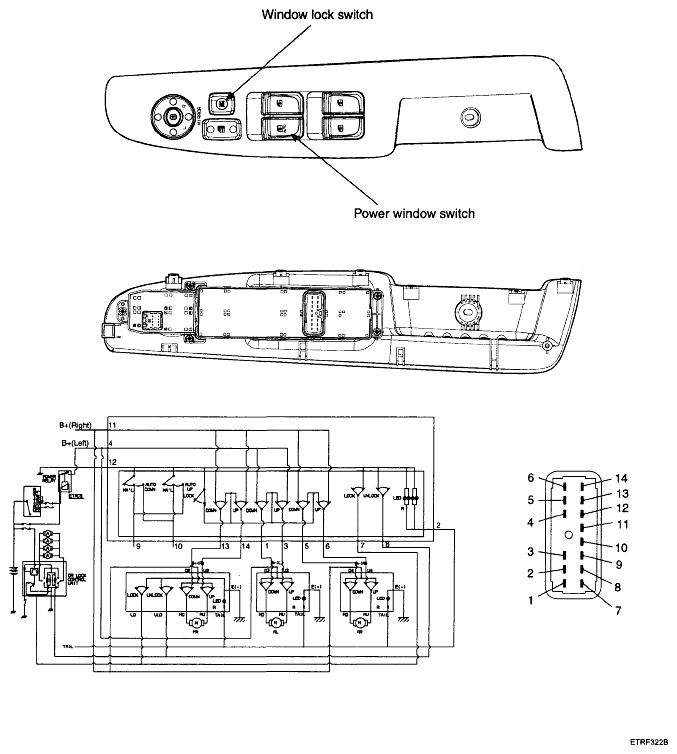

Fig 2: Power Window Switch Circuit Diagram (2 Of 3)
Courtesy of HYUNDAI MOTOR CO.

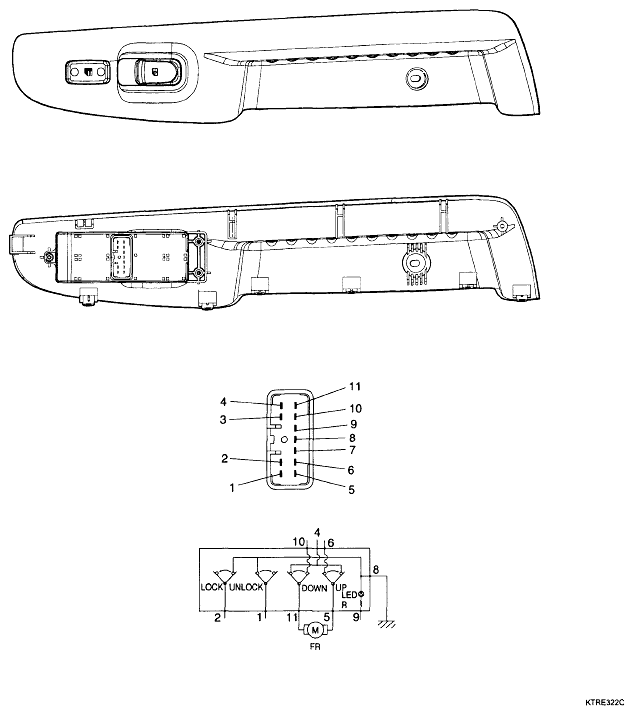

Fig 3: Power Window Switch Circuit Diagram (3 Of 3)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
