Emissions Control System
›
General
›
Components Location
Components Location

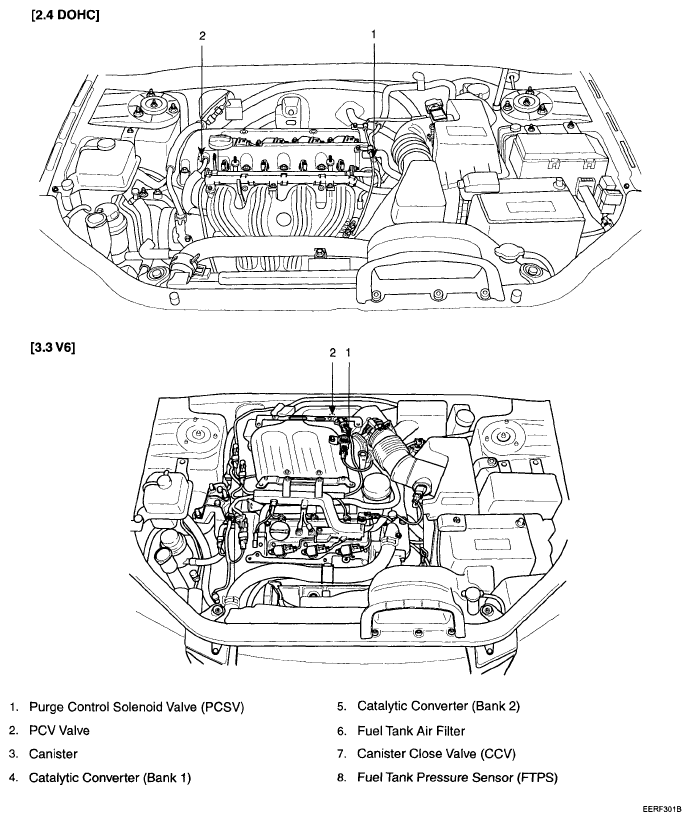

Fig 1: Identifying Emissions Control System Components
Courtesy of HYUNDAI MOTOR CO.
[2.4 DOHC]

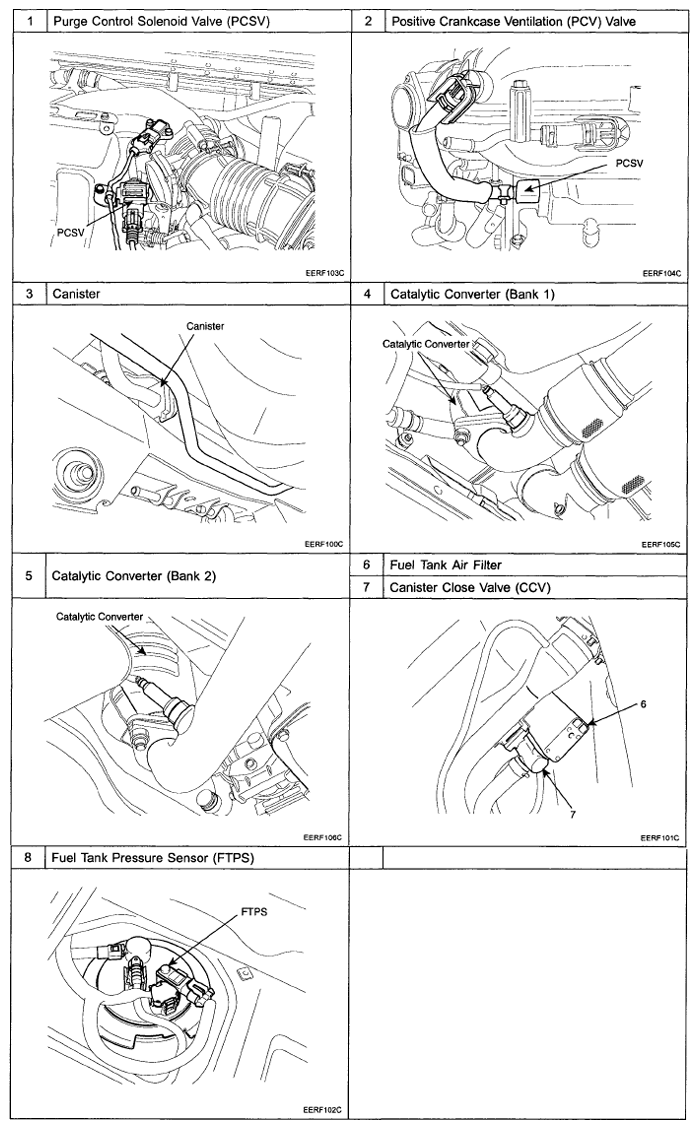

Fig 2: Identifying Emissions Control System Components (2.4 DOHC)
Courtesy of HYUNDAI MOTOR CO.
[3.3 V6]

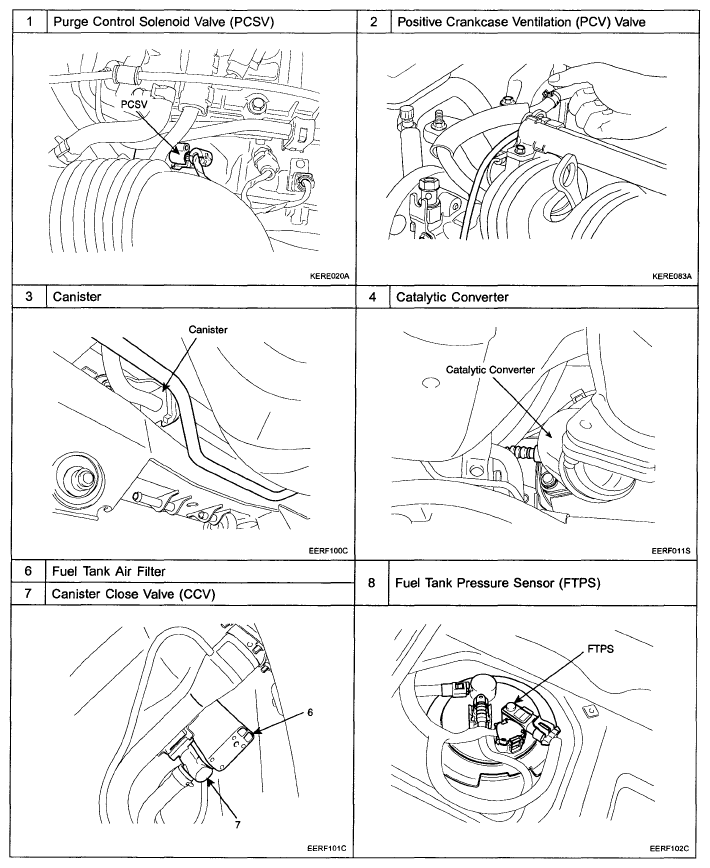

Fig 3: Identifying Emissions Control System Components (3.3 V6)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
