Disassembly And Assembly

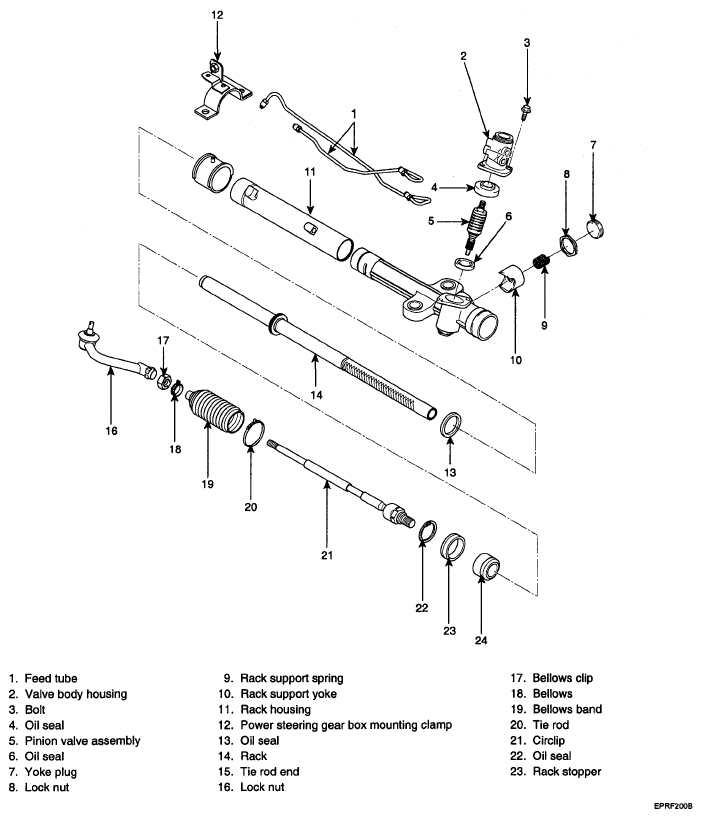

Fig 1: Exploded View Of Power Steering Gear Box Components
G04892392Courtesy of HYUNDAI MOTOR CO.
