Fuel System (G4GC-GSL 2.0L)
›
Fuel Delivery System
›
Components Location
Components Location

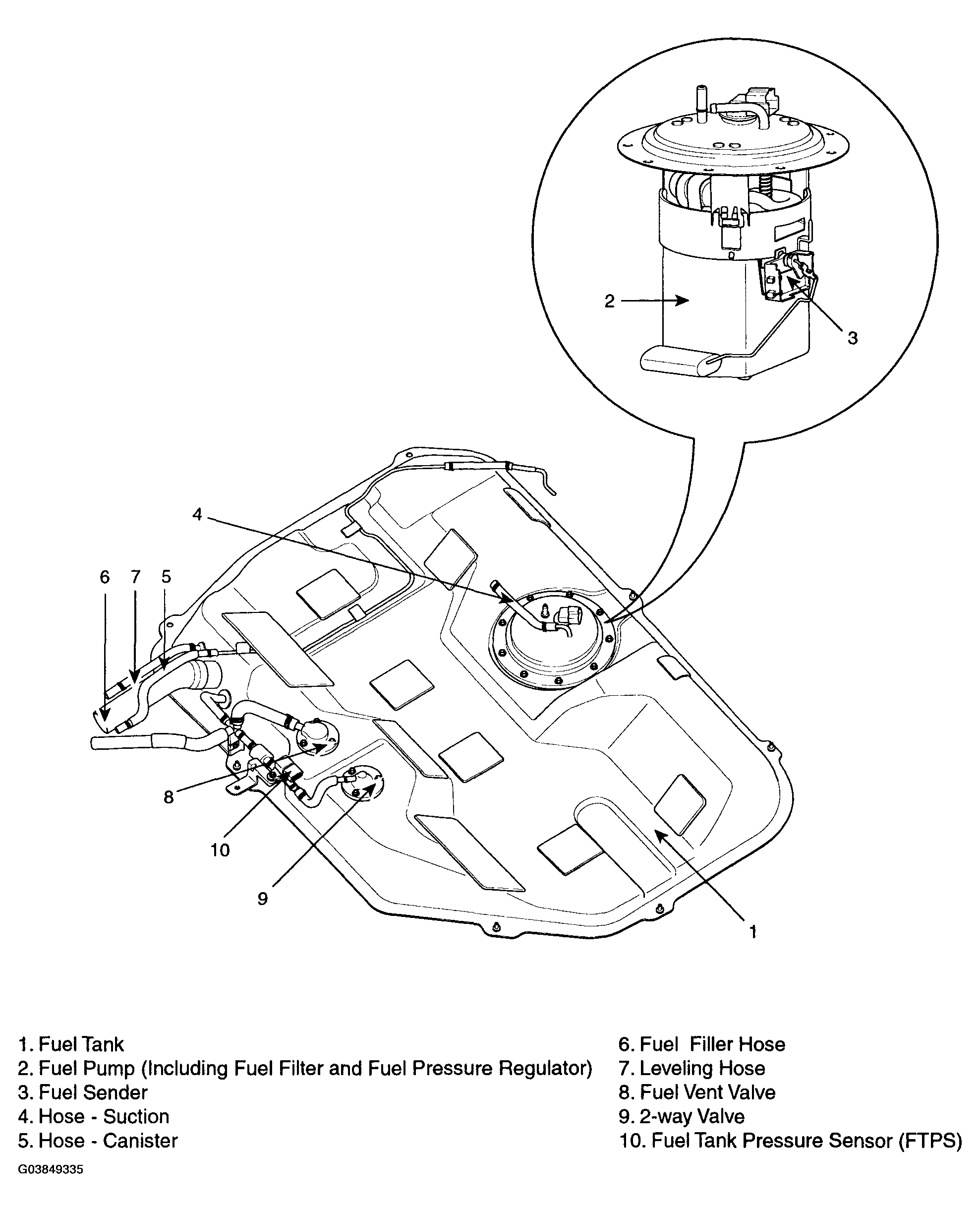

Fig 1: Identifying Components Of Fuel Delivery System
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
